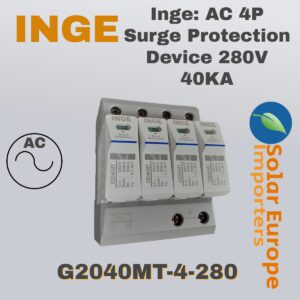

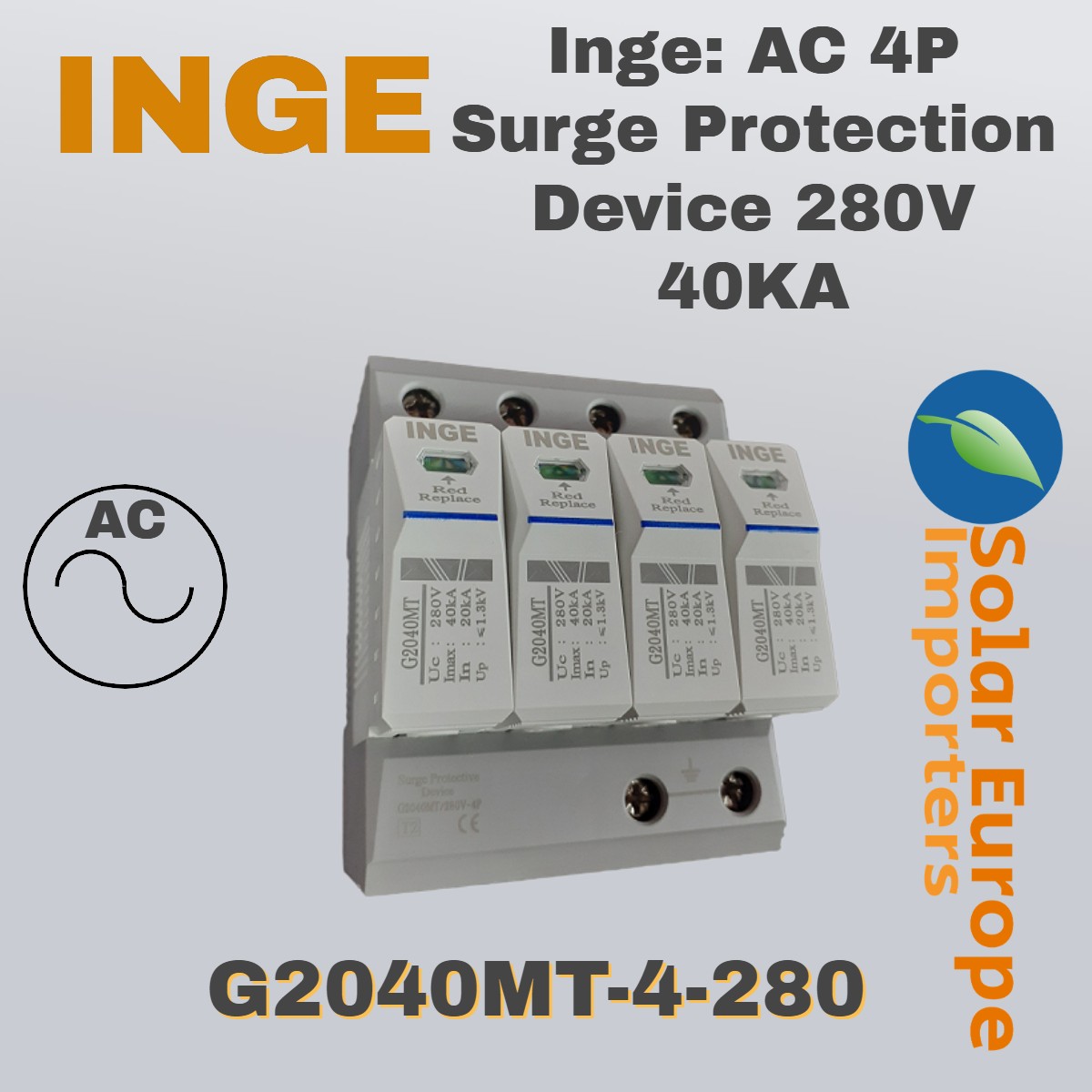

Inge: AC 4P Surge Protection Device 280V 40KA (G2040MT-4-280)

R569.80 Excl. VAT

Note: All of our prices are excluding VAT

139 in stock

Description

General Data
• Model: G2040MT
• Poles: 4-Pole
• Rated Voltage (Un): 220VAC
• Maximum Continuous Operation Voltage (Uc): 280VAC
• Voltage Protection Level (Up): 1.3KV
• Nominal Discharge Current (In): 20KA (8/20μs)
• Maximum Discharge Current (Imax): 40KA (8/20μs)
• Reaction Time: <25ns

Mechanical Data
• Test Level: T2
• Width / Pole: 18mm
• Casing Material: Plastic (UL94V-0)
• Indication Window: Yes
• Operating Temperature: -40°C to +85°C
• Ingress Protection IP20
• Mounting: DIN Rail 35mm (Fast Clip device)
• Safety Rating: TUV, CE, CQC
