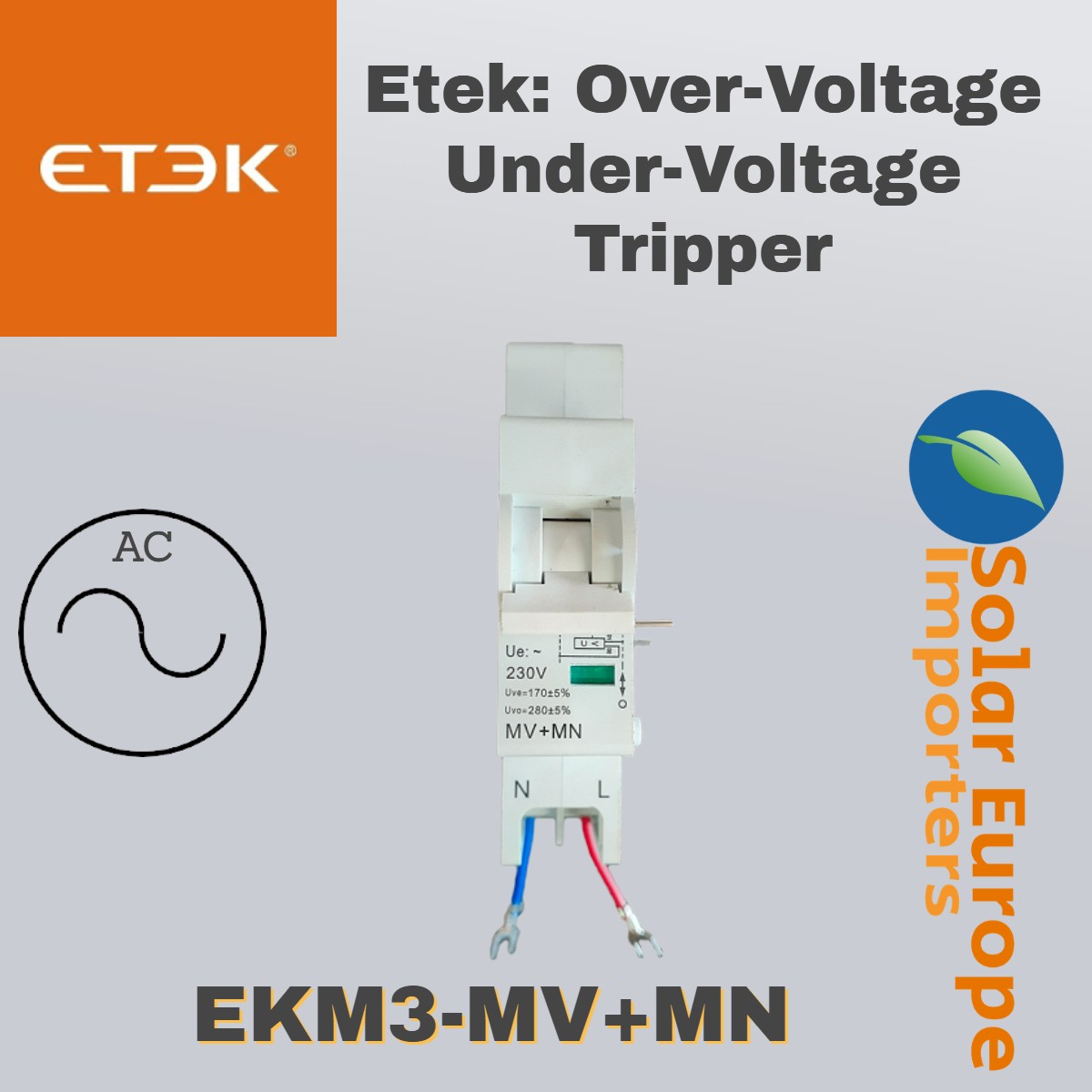

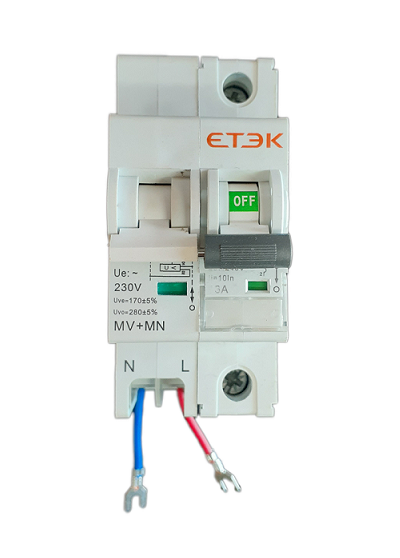

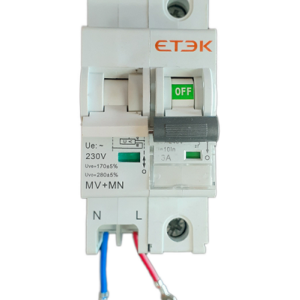

Etek: Over-Voltage Under-Voltage Tripper (EKM3-MV+MN)

R196.68 Excl. VAT

Note: All of our prices are excluding VAT

2426 in stock

Description

General Data
• Rated Voltage (Ue): 230VAC
• Rated Insulating Voltage (Ui): 500VAC
• Over-Voltage Tripping Range (Uvo): 280VAC ± 5%
• Under-Voltage Tripping Range (Uve): 170VAC ± 5%
• Terminal Wire Length: 11cm (Excess can be stored in MCB Casing)
• Mounting: Fastens to MCB with 3 x Self Tapping Screws

Mechanical Features
• Electrical Life: 4000 Cycles
• Mechanical Life: 4000 Cycles
• Protection Degree: IP20
• Operating Temperature: -5°C to 40°C
• Safety Rating: IEC/EN60947-5
