Description
General Data

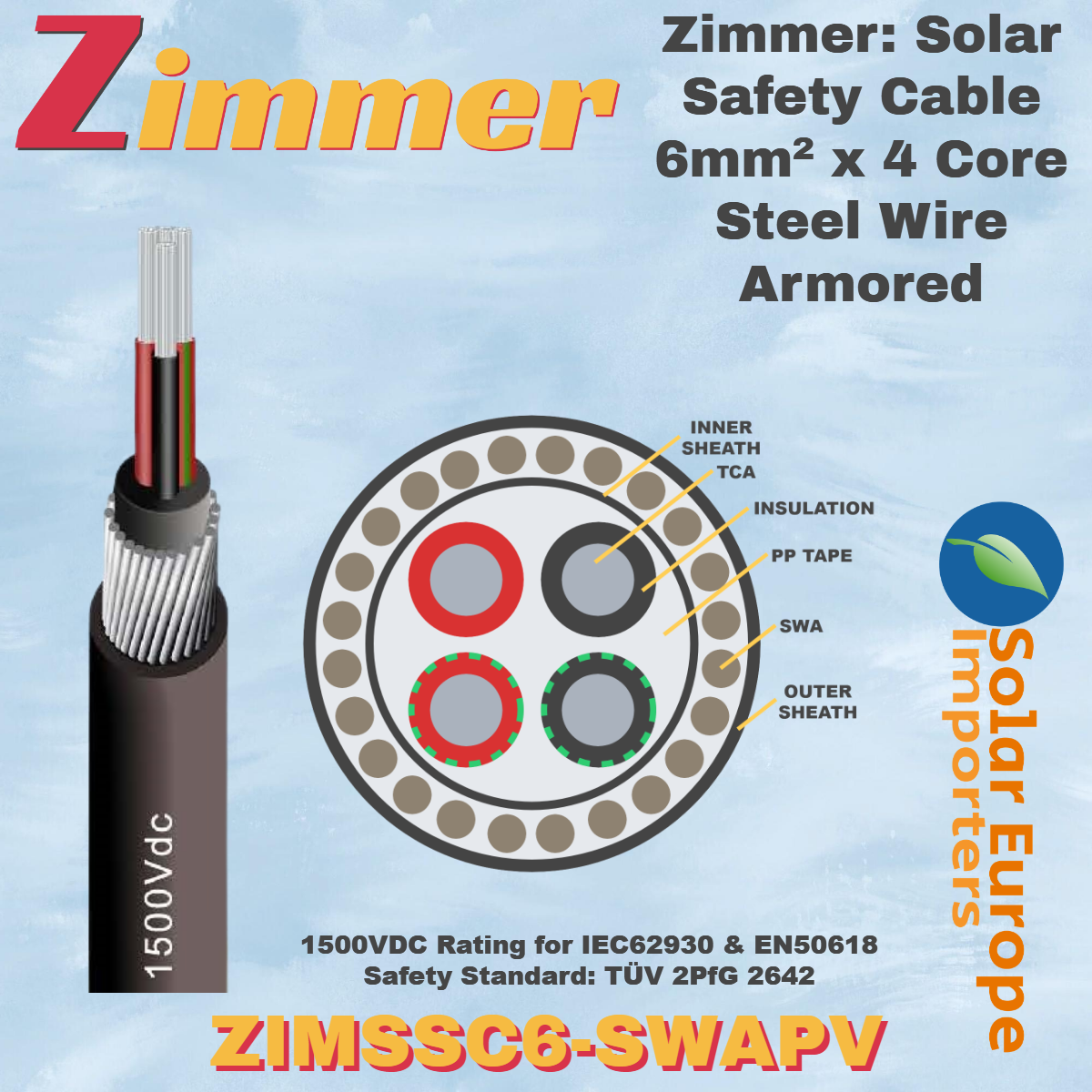

- Individual Cable Cross Section: 6mm²
- Conductor Material: Multi Strand Tinned Copper-Aluminium Alloy
- Rated Voltage: 1500VDC
- Cable Color: Black/Green, Black, Red/Green, Red
- Soldering: Suitable for Soldering
- Armour: Multi Strand Steel
- Conductor Inulation: Low-Smoke Halogen Free Cross-Linked Polyethylene (XLPE)
- Inner Sheath: Medium Density Polyethylene (MDPE)
- Outer Sheath: Medium Density Polyethylene (MDPE)
- Insulation: Suitable for Outdoor, Underground and Harsh Environments
- UV, Ozone & Hydrolysis Resistant
- Excellent Chemical and Corrosion Resistance at Elevated Temperatures
- Voltage Test: 6KV / 5min AC
- UV Test Standard: IEC62930
- Flame Test Standard: IEC60332
- 1m = 0.571kg
