Description
General Data
• Battery Type: Lithium-Ion
• Battery Module: HV10230
• Nominal Voltage: 102.4VDC
• Operating Voltage: 90VDC – 116VDC
• Total Energy: 3.1KWH
• Usable Energy: 2.8KWH
• Rated Capacity: 30AH
• Standard Power: 2.55KWH
• Maximum Power: 3.1KWH
• Recommended Charge / Discharge Current: 25A
• Maximum Charge / Discharge Current: 30A
• Battery Roundtrip Efficiency: 95%
• Cycle Life @ 90% DOD: 6000 Cycles
• Expected Life Time: 10 Years
• Operating Temperature Range: -30°C to 50°C
• Humidity Range: 0% to 100%
• Altitude: Below 3000m
• Ingress Protection: IP65
• Communication (System to Inverter): RS485 / CAN2.0
• Communication (Battery to Battery/BMS): CAN2.0
• Master Control Capacity Indicator: 4 LED(25%, 50%, 75%, 100%)
• Master Control LED Indicator (Working Mode): 1 LED
• System Switch (On/Off): 1 Button & 1 Breaker
• Certification: CE/IEC62619/UN38.8/IEC62040

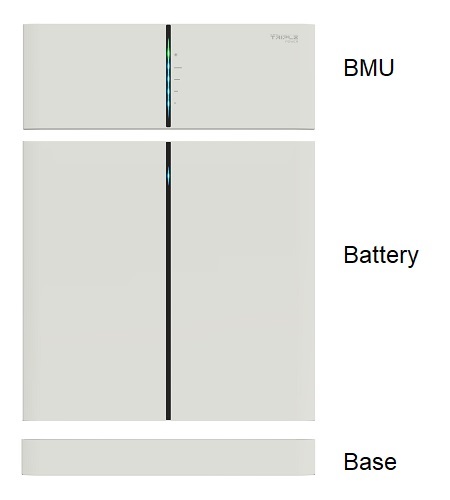

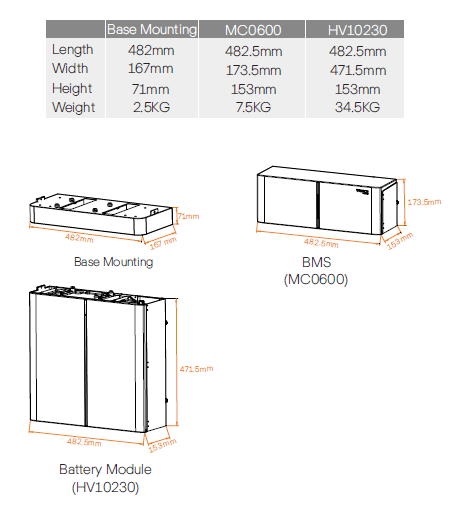

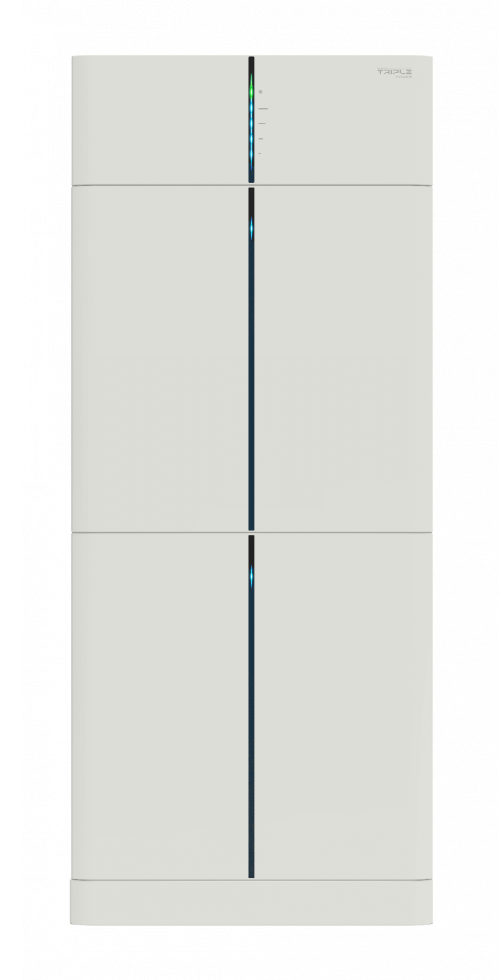

• Scalability: Up to 4 Modules (HV10230) Using Master Box (MC0600)
• Master Box and Base Mounting Sold Separately
