Description
General Data

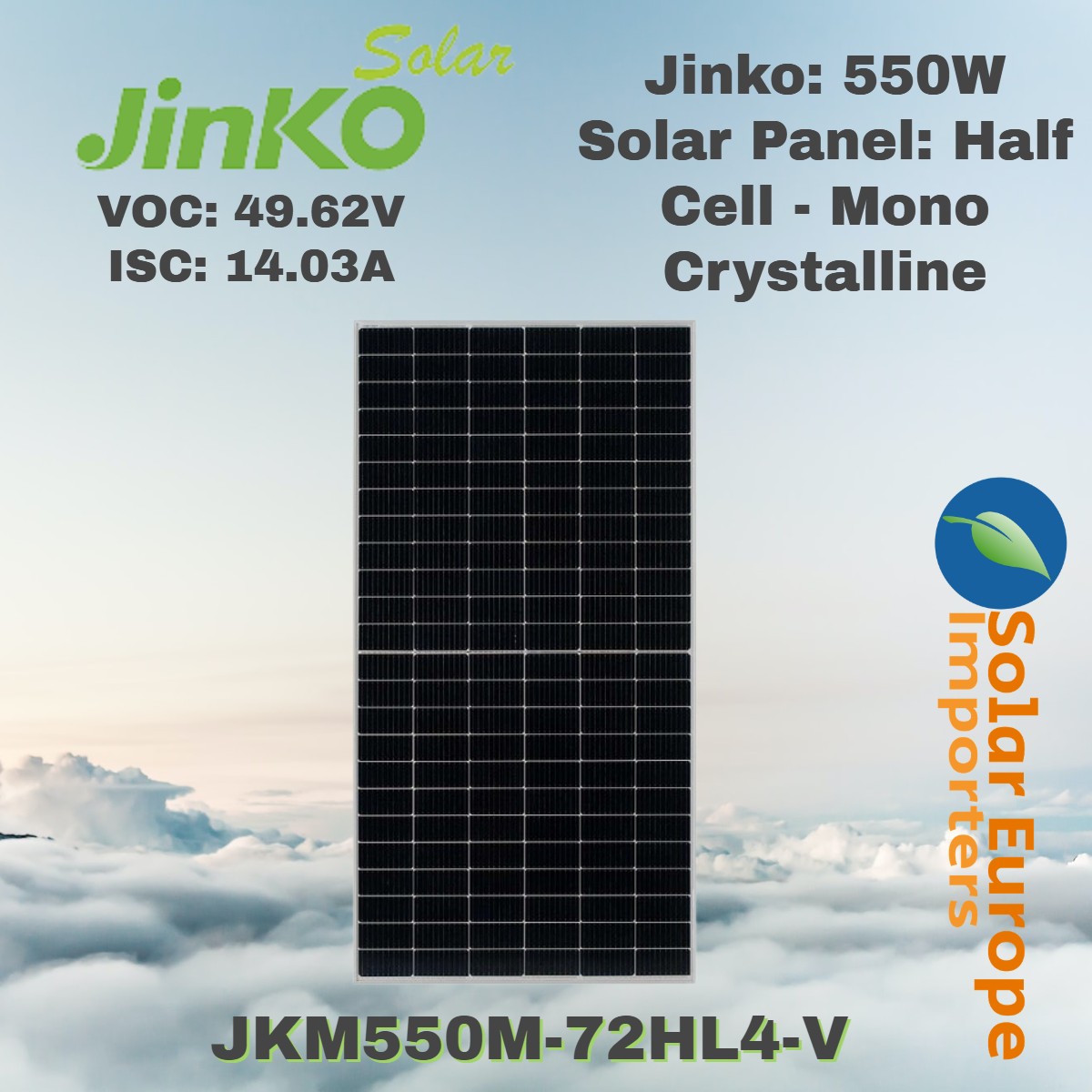

• Model No: JKM550M-72HL4-V
• Cell: Half Cell, Mono Crystalline
• No. of Cells: 144(6×24)
• Glass: Single Glass 3.2mm AR Coated Tempered
• Junction Box: IP68
• Connector: MC4
Electrical Parameters at STC
• Maximum Rated Power(Pmax): 550W
• Maximum Power Voltage(Vmp): 40.90VDC
• Maximum Power Current(Imp): 13.45A
• Open Circuit Voltage(Voc): 49.62VDC
• Short Circuit Current(Isc): 14.03A
• Module Efficiency: 21.29%
Operating Conditions
• Maximum System Voltage: 1500VDC
• Maximum Series Fuse: 25A
• Operating Temperature: -40°C to 85°C
Safety Ratings
• IEC 61215
• IEC 61730
