Description
General Data

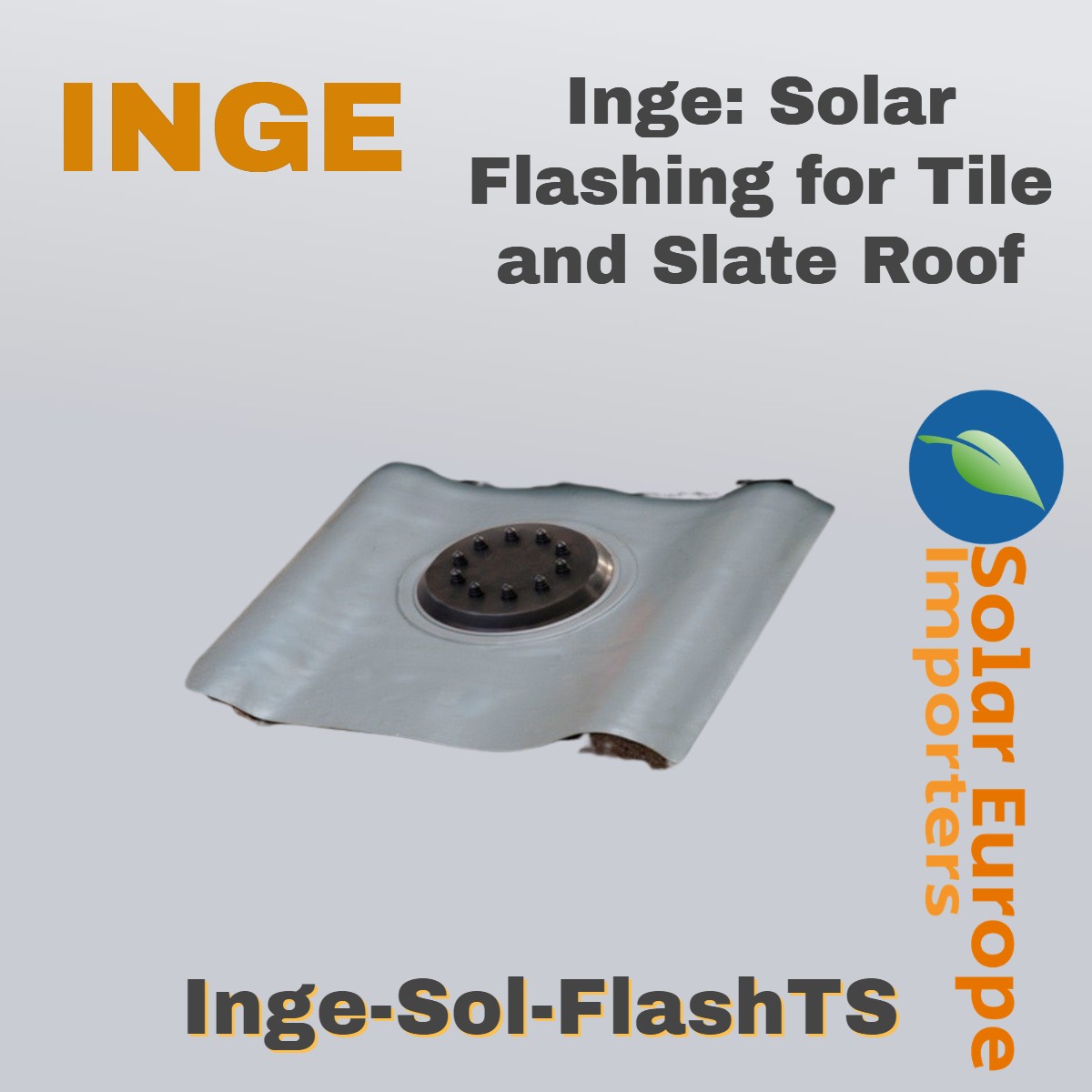

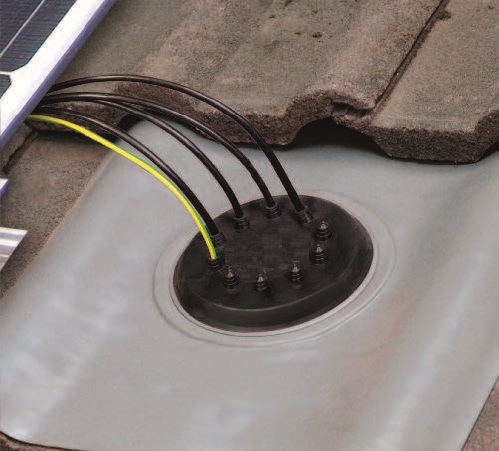

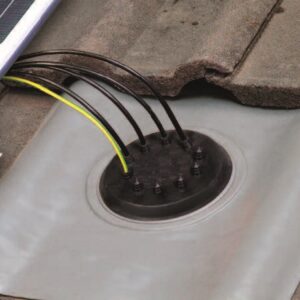

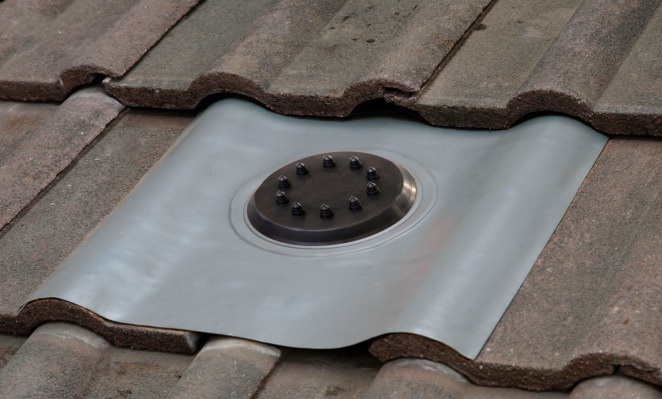

• Allows up to 10 PV cables to be taken neatly through any Tile or Slate roof
• Flexible Lead Base easily conforms to Tile or Slate shape
• EPDM Boot ensures a Weatherproof Seal
• EPDM Nipples can be cut according to Solar Cable size (4mm-6mm / 6mm-8mm)
• High UV Resistance & long Service Life
• Eliminates having to fill holes with Silicone
• Base Size: 490mm x 410mm
Installation
• Check exact outer diameter of Solar Cables
• Cut the EPDM Nipples as required (4mm-6mm / 6mm-8mm)
• Cut only with a Scissors or Tin Snips ensuring cut is straight and parallel
• Cable fit must be tight to ensure a good seal
• Use only water as a Cable lubricant if required
