Description
General Data

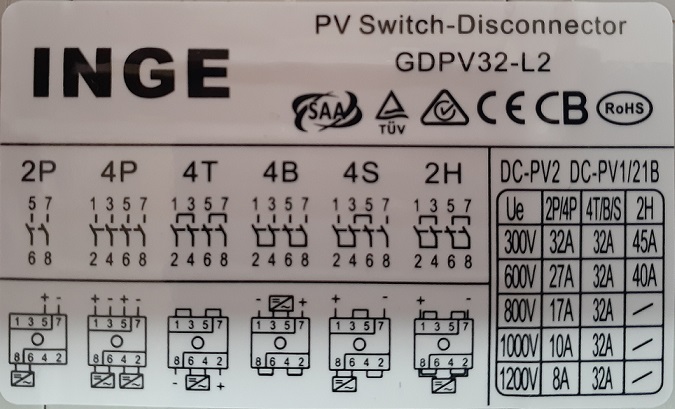

• Type: DC-PV2 DC-PV1/21B
• Rated Current: 32A
• Rated Voltage Ui: 1200VDC
• Rated Impulse Withstand Voltage Uimp: 8000V
• Polarity: No Polarity

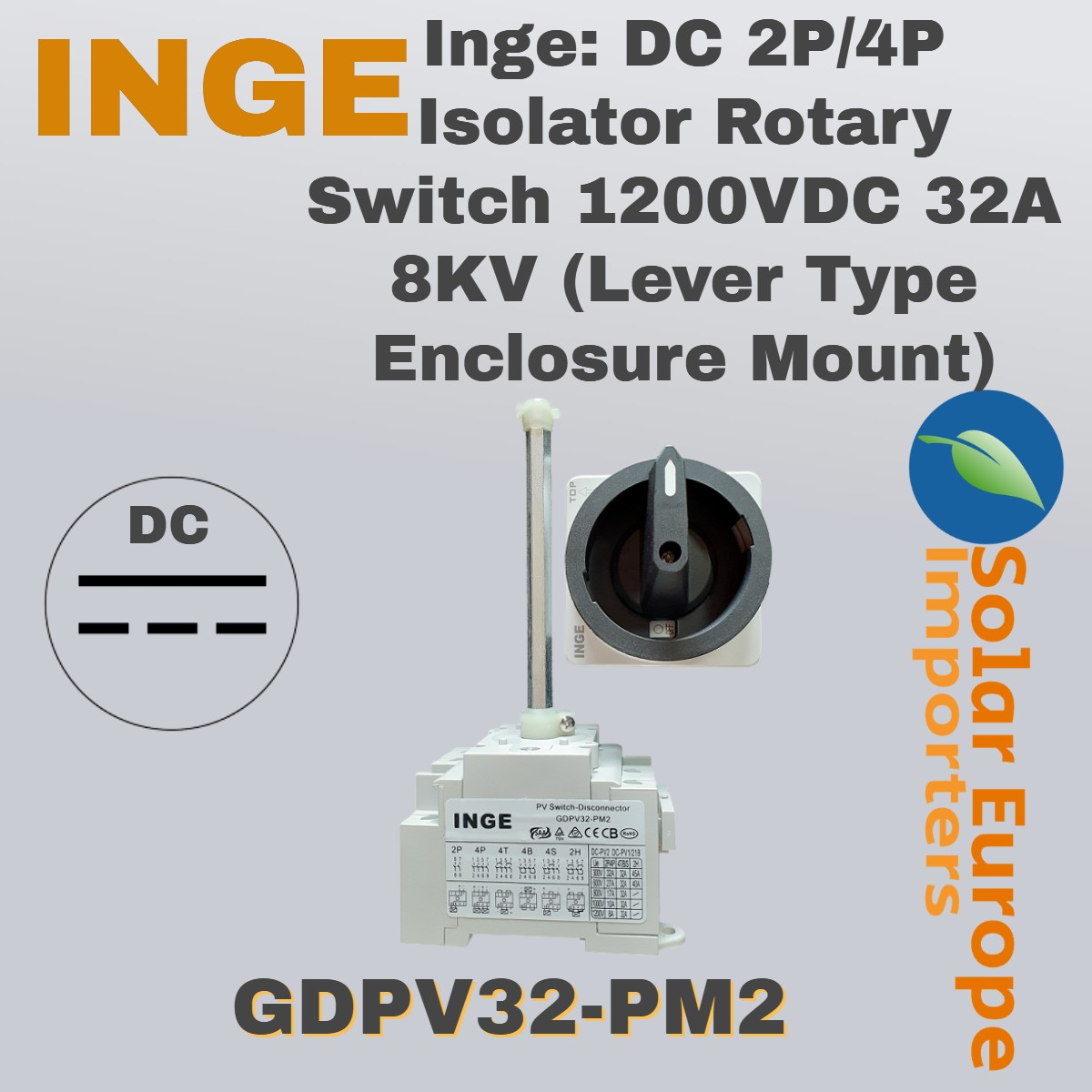

• Switch Type: Extension Lever & Separate Rotary Switch Body
• Switch Position Indicator: Yes
• Safety Lock: Yes (Lockable on Rotary Switch Body)
• Rotary Positions: On / Off / Off(Lock)
Installation
• Protection Degree: IP20
• Operation Temperature: -40°C to 85°C
• Terminal Connection Type: Cable
• Mounting: DIN Rail 35mm (Fast Clip Device) / Wall Mount / Enclosure Mount
• Safety Rating: IEC60947-3
