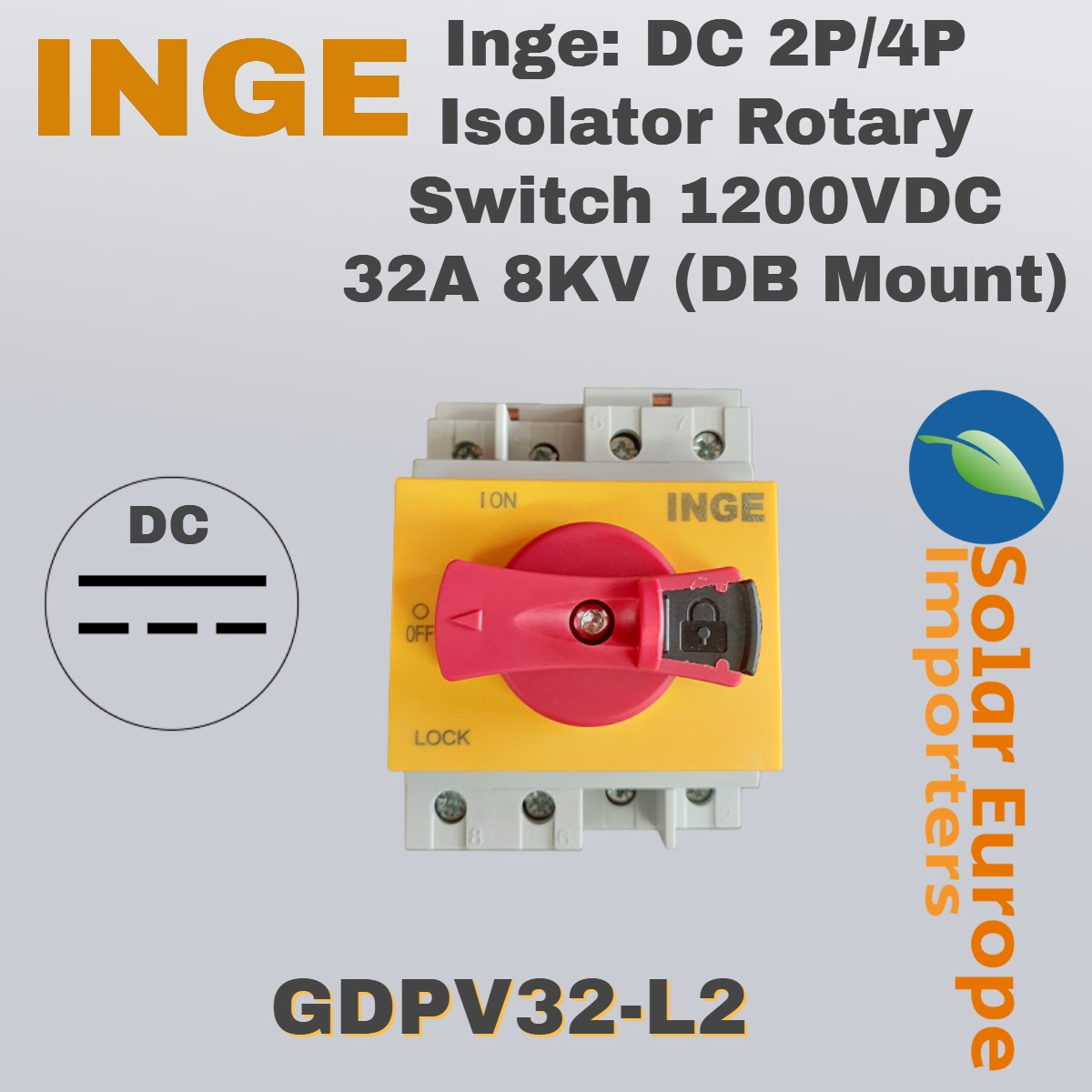

Inge: DC 2P/4P Isolator Rotary Switch 1200VDC 32A 8KV (DB Mount) (GDPV32-L2)

R716.61 Excl. VAT

Note: All of our prices are excluding VAT

Out of stock

Description

General Data
• Type: DC-PV2 DC-PV1/21B
• Rated Current: 32A
• Rated Voltage Ui: 1200VDC
• Rated Impulse Withstand Voltage Uimp: 8000V
• Polarity: No Polarity
• Switch Type: Flush Mount Rotary
• Switch Position Indicator: Yes
• Safety Lock: Yes (Push Down Tab + Lockable)
• Rotary Positions: On / Off / Lock

Installation
• Protection Degree: IP20
• Operation Temperature: -40°C to 85°C
• Terminal Connection Type: Cable
• Mounting: DIN Rail 35mm (Fast Clip Device) / Wall Mount
• Safety Rating: IEC60947-3
