Description
General Data

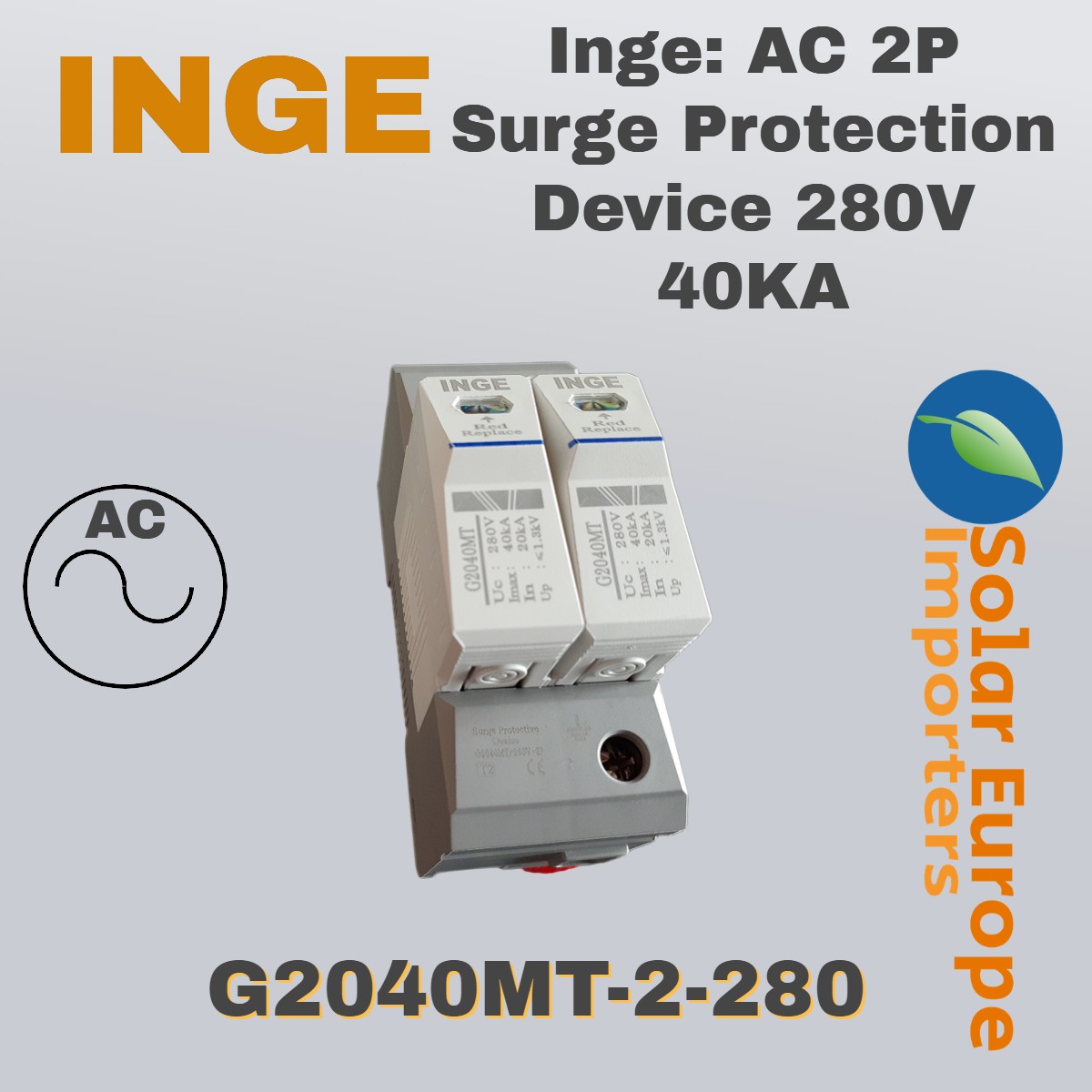

• Model: G2040MT
• Poles: 2-Pole
• Rated Voltage (Un): 220VAC
• Maximum Continuous Operation Voltage (Uc): 280VAC
• Voltage Protection Level (Up): 1.3KV
• Nominal Discharge Current (In): 20KA (8/20μs)
• Maximum Discharge Current (Imax): 40KA (8/20μs)
• Reaction Time: <25ns
Mechanical Data
• Test Level: T2
• Width / Pole: 18mm
• Casing Material: Plastic (UL94V-0)
• Indication Window: Yes
• Operating Temperature: -40°C to +85°C
• Ingress Protection IP20
• Mounting: DIN Rail 35mm (Fast Clip device)
• Safety Rating: TUV, CE, CQC
