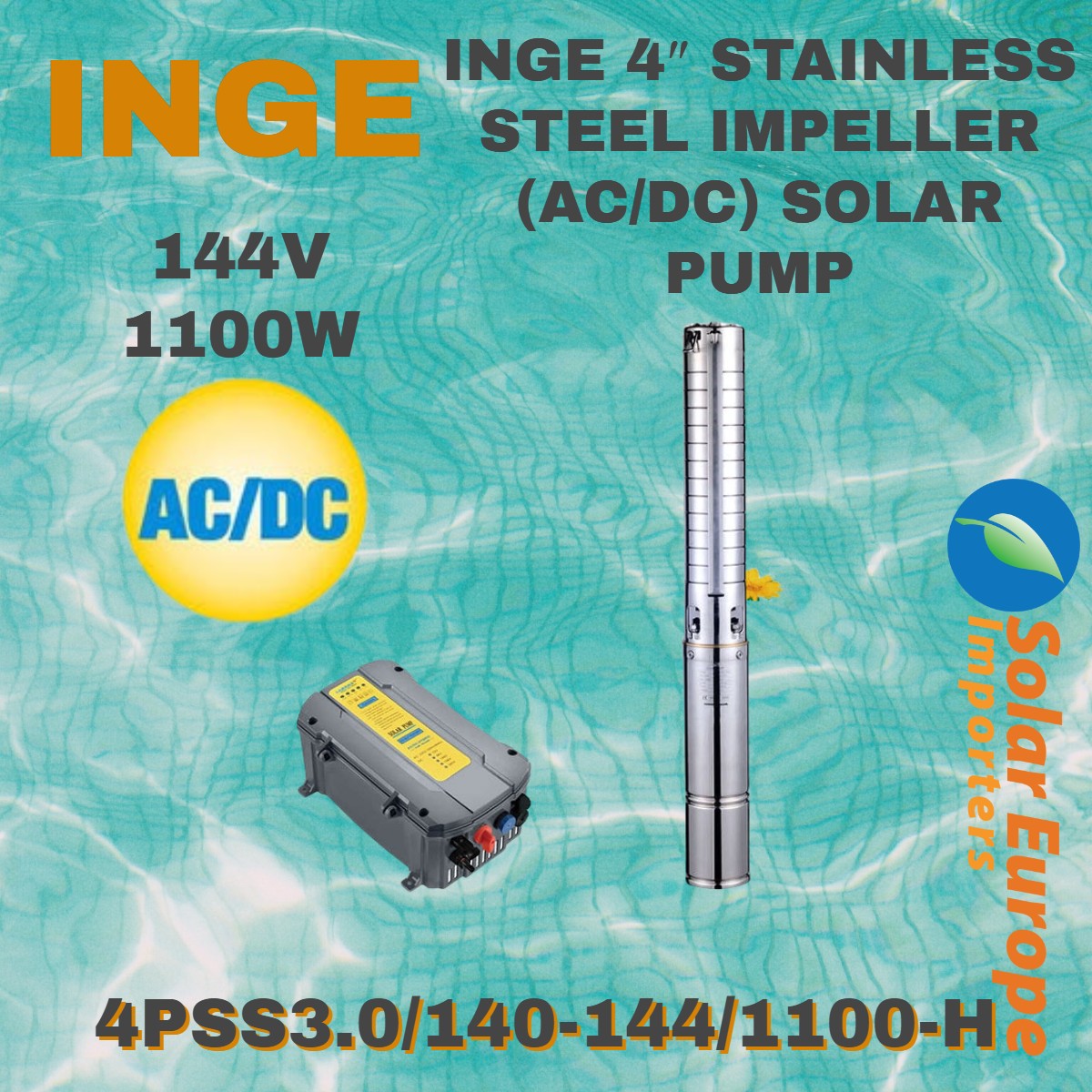

INGE 4″ STAINLESS STEEL IMPELLER(AC/DC) SOLAR PUMP (4PSS3.0/140-144/1100-H) 1100W

R11,571.00

Excl Vat

Flow-3000L/hour

Head-140m

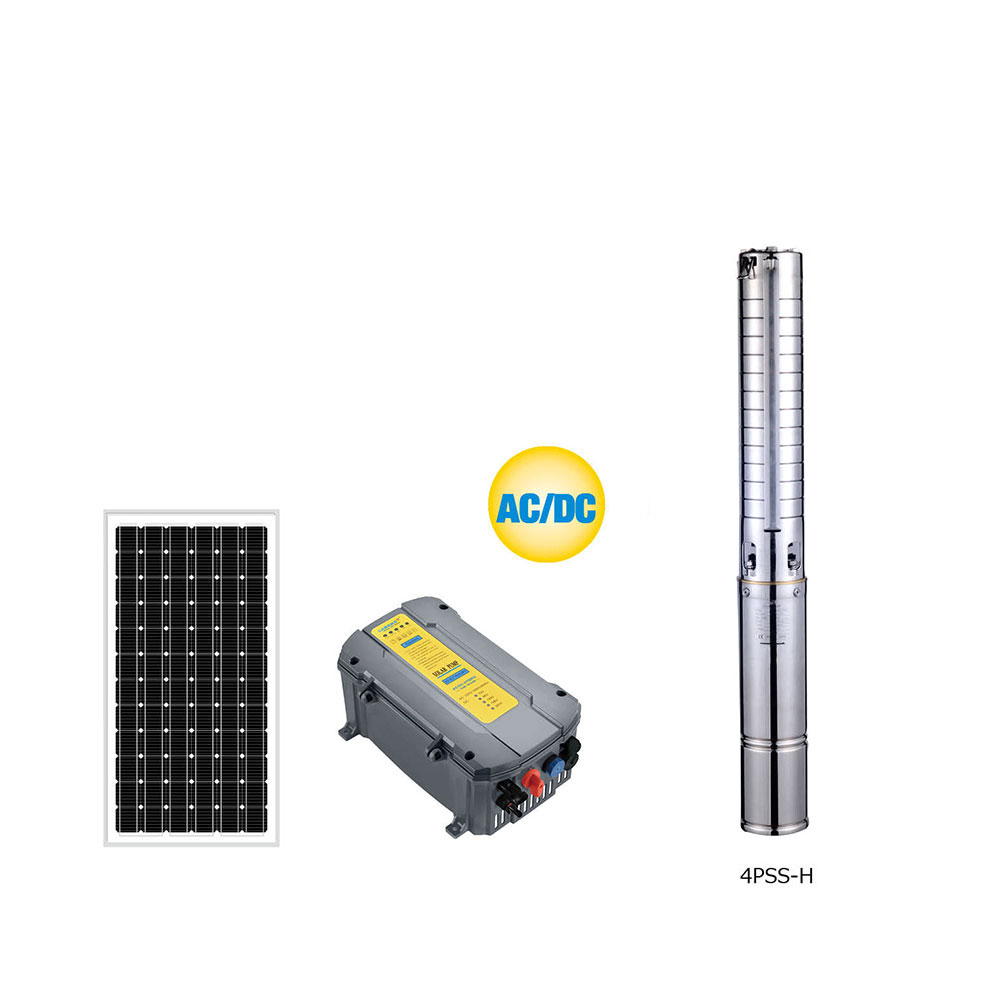

AC/DC Borehole Solar Pump with control Box

  • Support 220VAC power from grid/generator or Solar DC power by selector switch.
  • Permanent magnet DC brushless motor, efficiency improved by 20%-30%
  • Longer use life than normal electrical AC pump motor.
  • Stainless steel or brass outlet/connection fitting/oil cylinder base.
  • High efficiency intelligent MPPT controller makes pump start and stop working automatically.
  • Overload protection current, over current protection, well shortage water protection, soft start
  • Controller waterproofing grade IP54.
  • Ambient temperature: (-15deg) – (70deg)

Out of stock

SKU: 4PSS3.0/140-144/1100-H Category:

Description

4″AC/DC DC SS Impeller Solar pump with Control Box

  • Outlet/connection fitting: 304 stainless steel
  • Cylinder: brass /stainless steel
  • Impeller: 304 stainless steel
  • Pump cable: 2M
  • Oil cooling
  • DC MPPT function controller
  • Support 220Vac power or DC solar power.
  • 2 years warranty

Datasheet

Performance curve

Panel connection

Panel advice

CONTROLLER TECHNICAL DATA
