Description
General Data

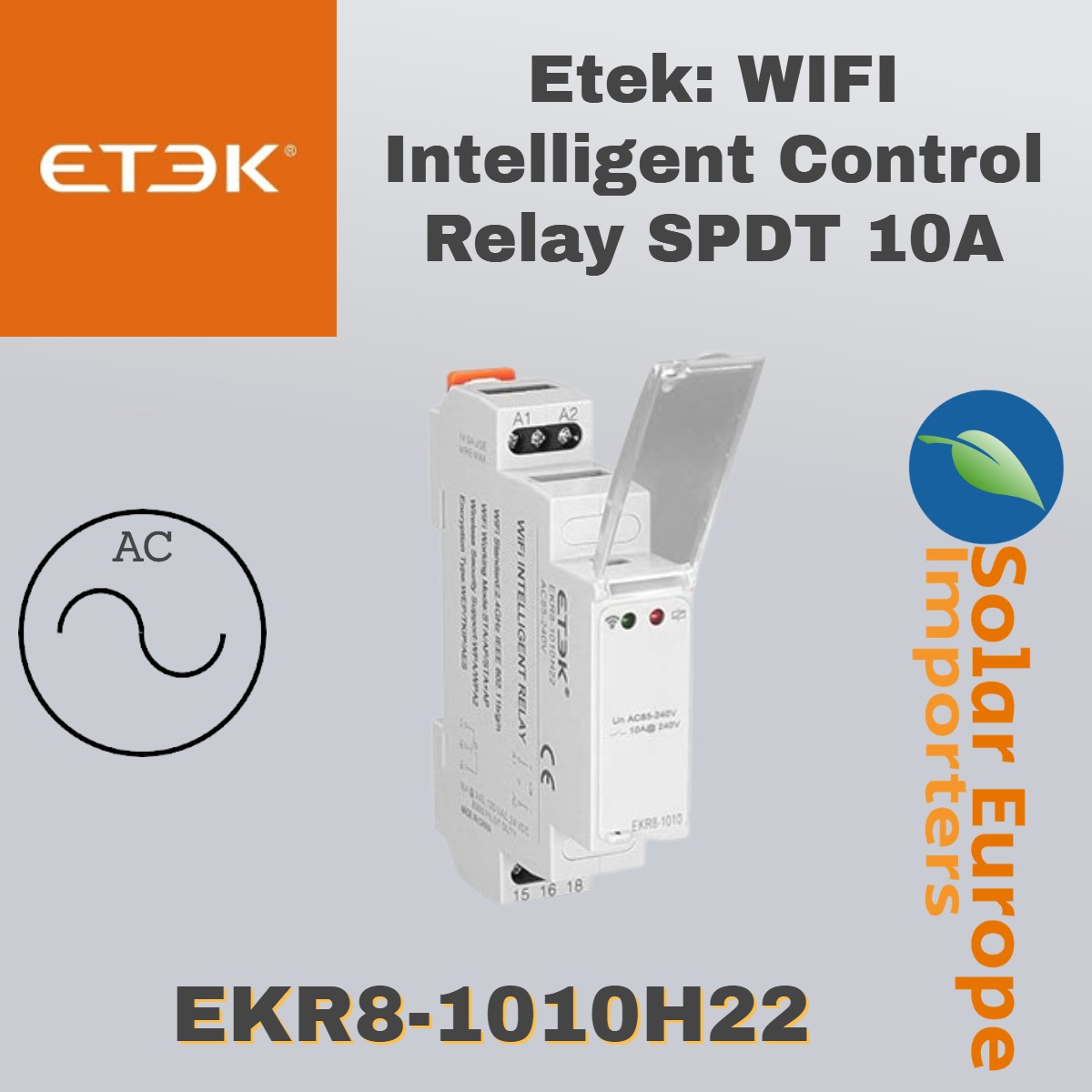

• Model: EKR8-1010H22
• Rated Current: 10A
• Rated Voltage: 85VAC to 240VAC / 24VDC
• Type: Single-Pole Double-Throw (SPDT)
• Pilot Duty Rating: B300
• Mode Support: Switch, Timing Start/Stop, Cycle Control

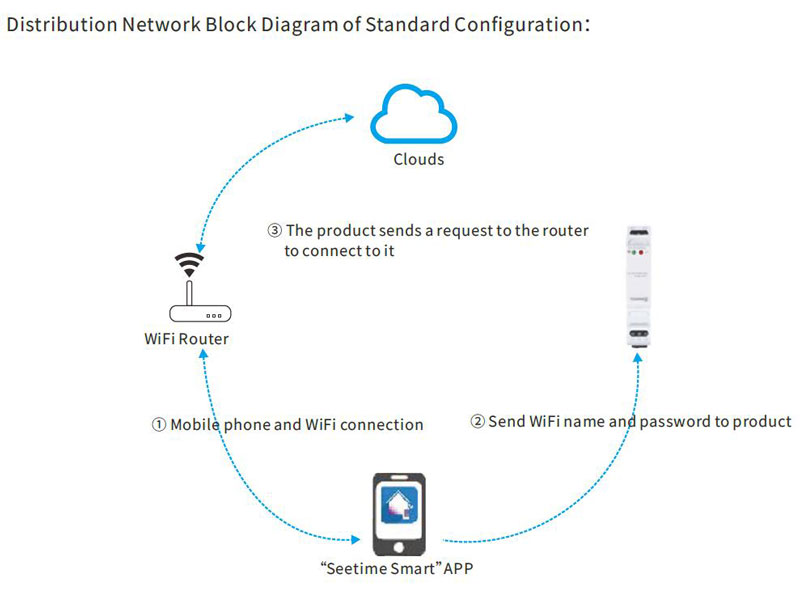

WIFI Data
• WIFI Standard: IEEE 802.11b/g/n
• WIFI Working Mode: STA/AP/STA+AP
• Wireless Security: WPA/WPA2
• Wireless Encryption: WEP/TKIP/AES
• Working Frequency: 2.4GHZ

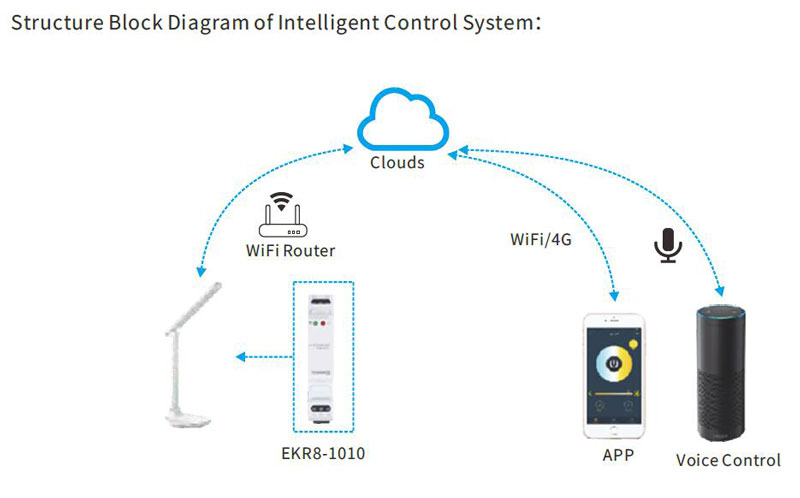

• WIFI APP Control: Local & Remote including Voice Platform Support
• WIFI APP OS Support: Android & iOS
• Antenna Type: Internal
• Wireless Transmission Distance
•• Indoor: 45m
•• Outdoor: 150m

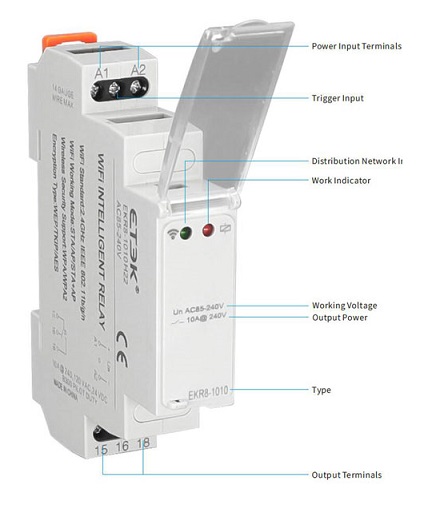

Mechanical Data
• Indication LED: Yes
• Ingress Protection IP20
• Operating Temperature: -10°C to +60°C
• Working Humidity: 5% to 95% (Non-Condensing)
• Mounting: DIN Rail 35mm
• W=18mm
