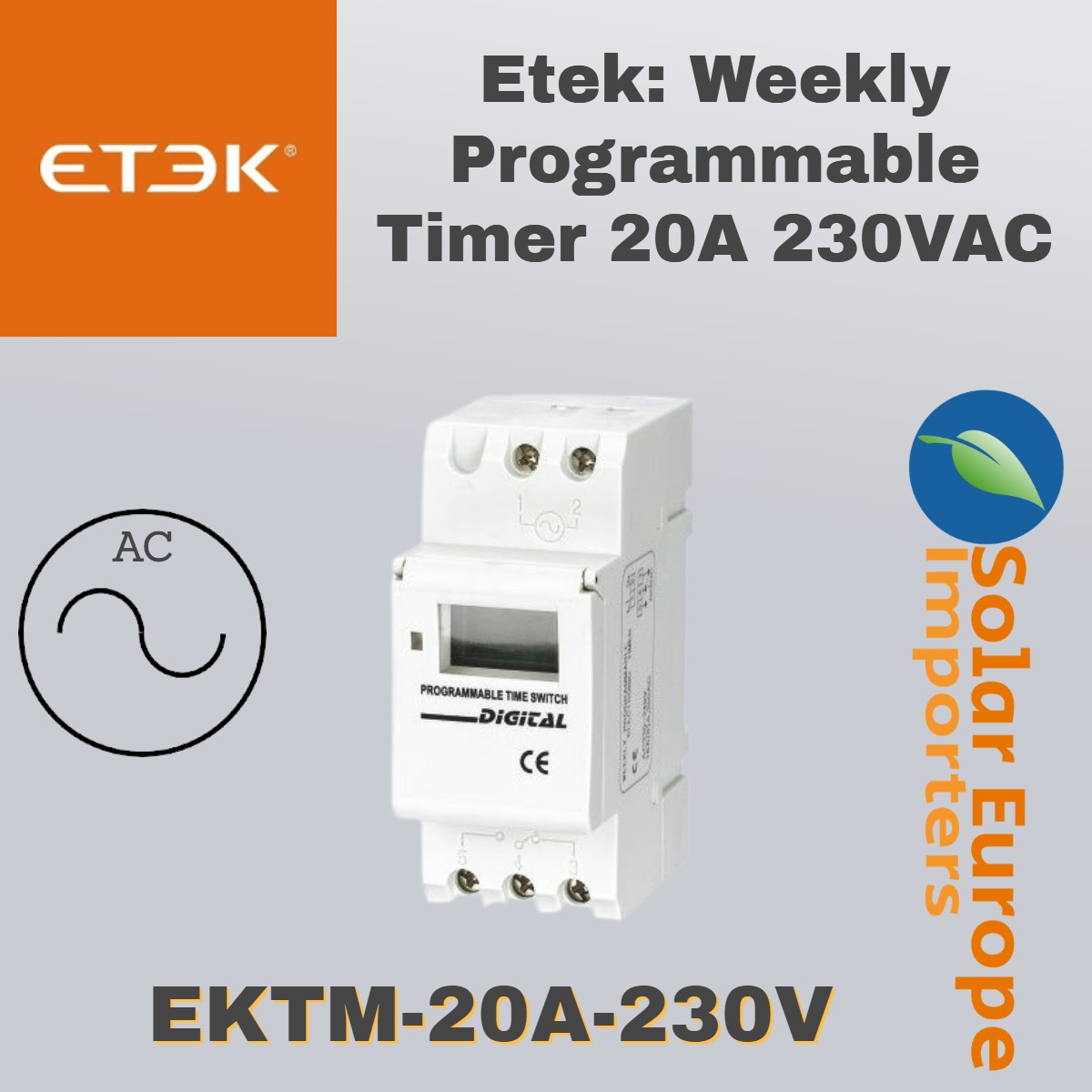

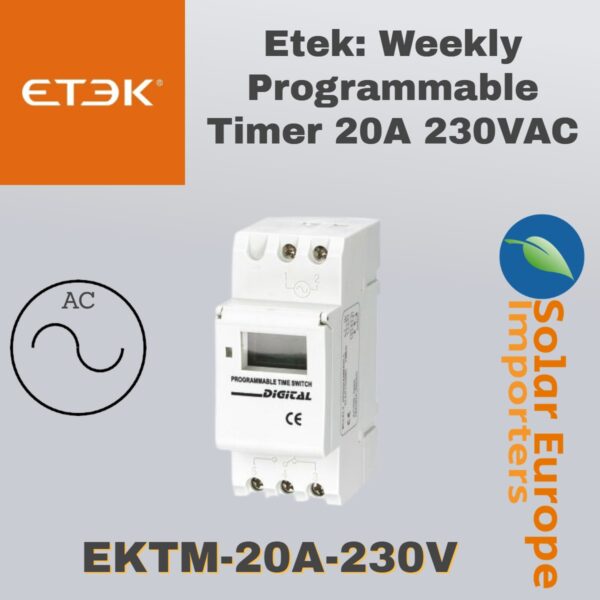

Description
General Data
• Contact Capacity: 250VAC 20A
• Full Timing Range: Per Week / Per Day Cycle
• Contact resistance: ≤50mΩ
• Insulation Resistance: ≥100mΩ
• Coil Voltage: 230V AC (85% ~ 110%)
• Display: LCD Display
Mechanical Features
• Width: 36mm
• Ingress Protection: IP20
• Operating Temperature: -10°C to 40°C
• Mounting: DIN Rail 35mm
