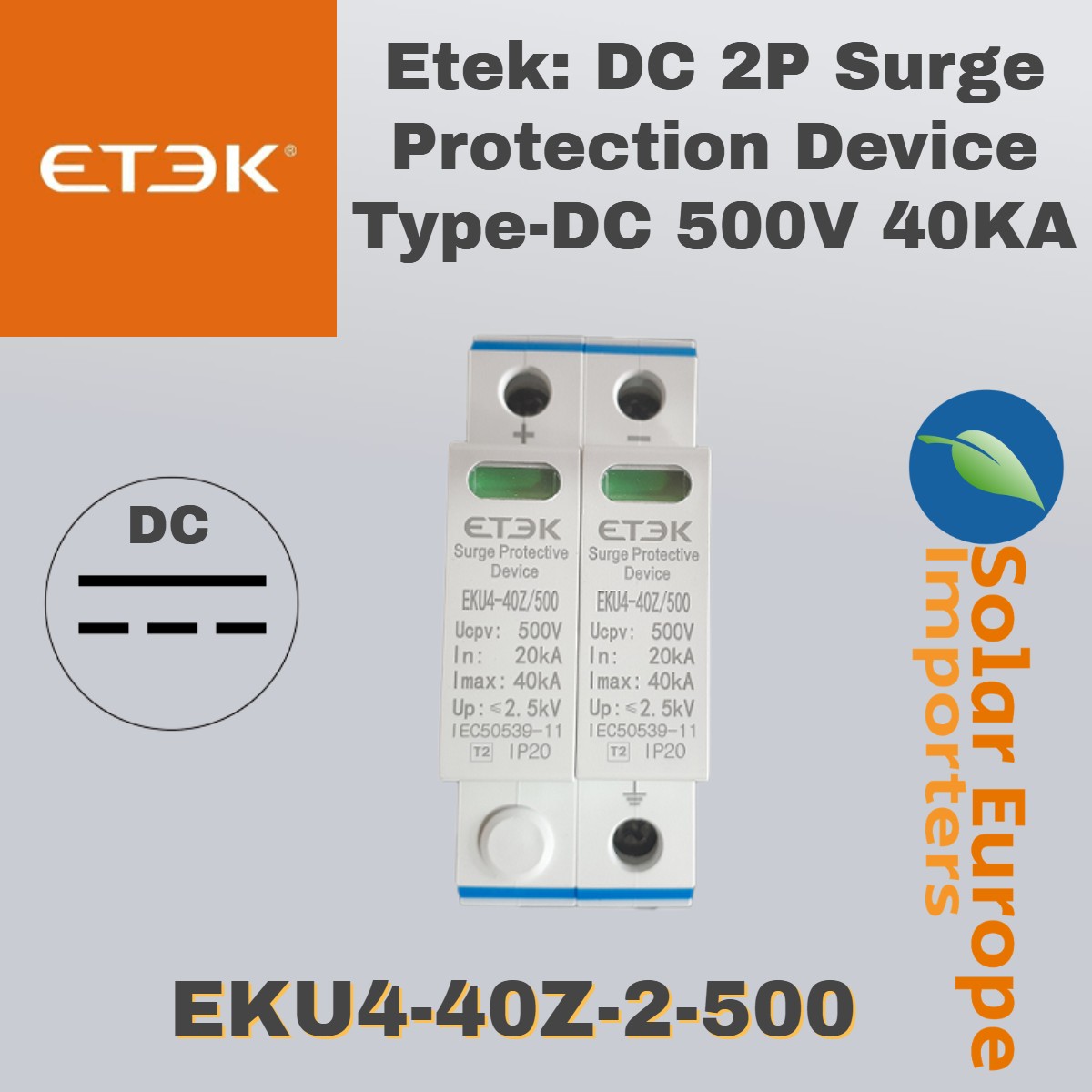

Etek: DC 2P Surge Protection Device Type-DC 500V 40KA (EKU4-40Z-2-500)

R519.55 Excl. VAT

Note: All of our prices are excluding VAT

Out of stock

SKU: EKU4-40Z-2-500 Categories: , ,

Description

General Data
• Model: EKU4-40Z
• Type: DC
• Poles: 2-Pole
• Maximum Continuous Operation Voltage (Ucpv): 500VDC
• Voltage Protection Level (Up): 2.5KV
• Nominal Discharge Current (In): 20KA (8/20μs)
• Maximum Discharge Current (Imax): 40KA (8/20μs)
• Reaction Time: <25ns

Mechanical Data
• Test Level: T2
• Width / Pole: 18mm
• Casing Material: PBT
• Indication Window: Yes
• Operating Temperature: -40°C to +80°C
• Ingress Protection IP20
• Mounting: DIN Rail 35mm (Fast Clip device)
• Safety Rating: EN50539-11
