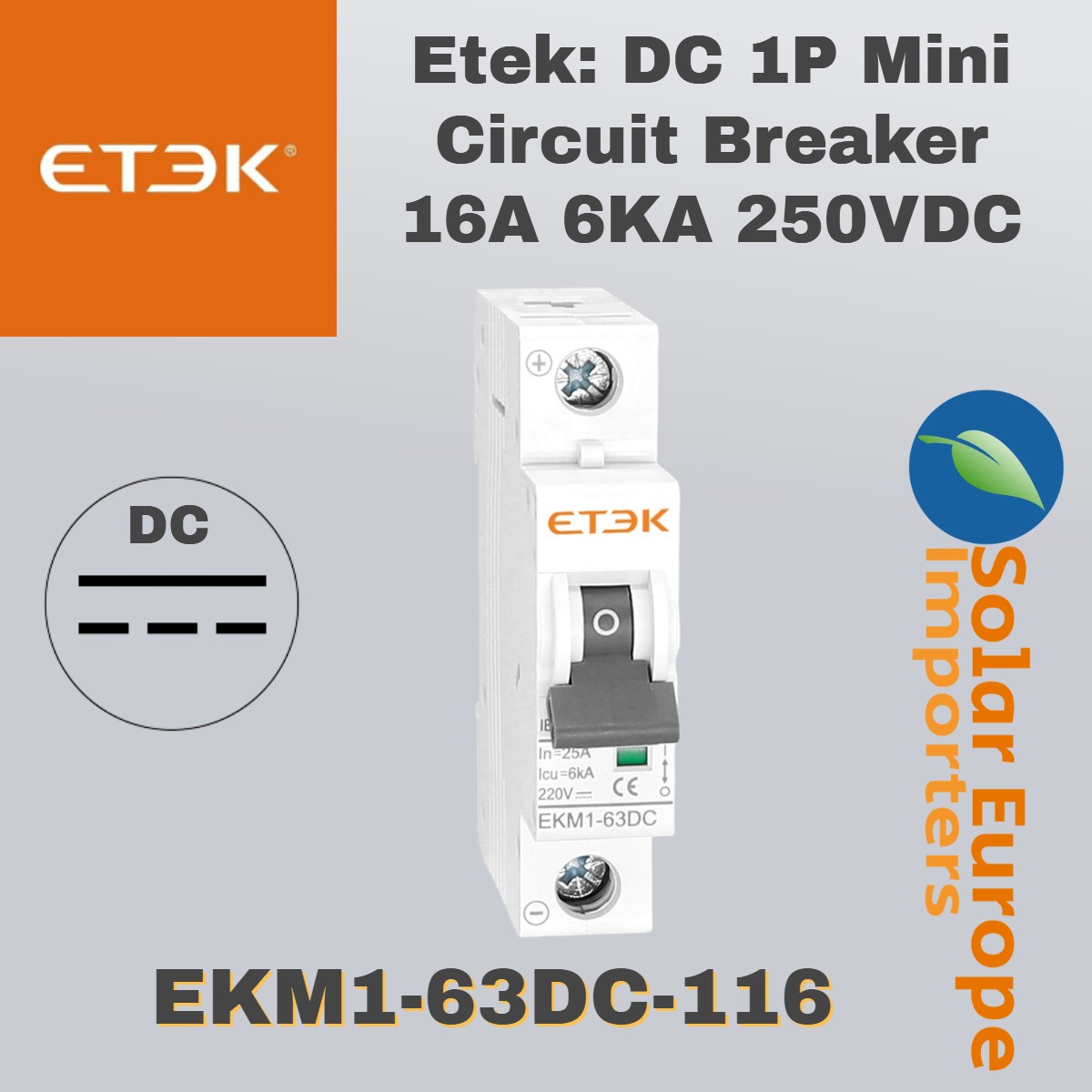

Etek: DC 1P Mini Circuit Breaker 16A 6KA 250VDC (EKM1-63DC-116)

R119.61 Excl. VAT

Note: All of our prices are excluding VAT

492 in stock

Description

Electrical Features
• Rated Current (In): 16A
• Poles: 1-Pole
• Rated Voltage (Ue): 250VDC
• Rated Breaking Capacity: 6KA
• Thermo-Magnetic Release Characteristic: C (7~10)In

Mechanical Features
• Electrical Life: 4000 Cycles
• Mechanical Life: 10000 Cycles
• Contact Position Indicator: Yes
• Ingress Protection: IP20
• Safety Rating: IEC60947-2

Installation
• Terminal Connection Type: Cable / Pin-type Busbar / U-type busbar
• Terminal Size Top / Bottom for Cable: 25mm2 18-3AWG
• Terminal Size Top / Bottom for Busbar: 25mm2 18-3AWG
• Mounting: DIN Rail 35mm (Fast Clip device)

Brochure Download

For more information, please download the brochure here: Download
