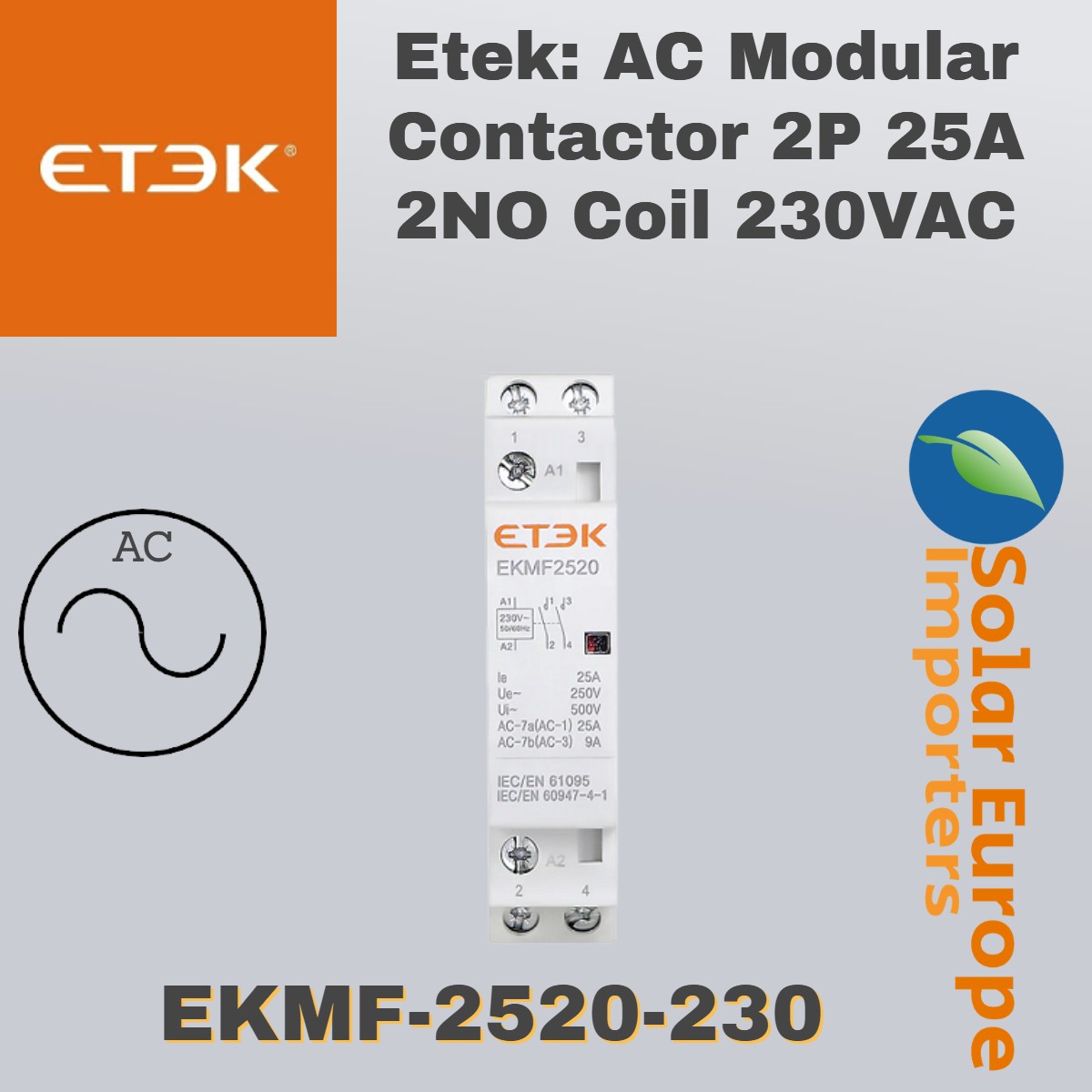

Description
General Data
• Type: 2 Contact Normally Open Coil Actuated
• Operating Current (Ie): 25A
• Rated Operational Voltage (Ue): 250VAC
• Rated Insulation Voltage (Ui): 500VAC
• Poles: 2-Pole
• Rated Frequency: 50Hz / 60Hz
• Contact Position Indicator: Yes
• Ingress Protection IP20
• Safety Rating: IEC 61095 / 60947-4-1
• Mounting: DIN Rail 35mm (Fast Clip device)
Load Ratings
• Non Inductive / Slightly Inductive Loads AC-7a(AC-1): 25A
• Motor Loads for Household Appliances AC-7b(AC-3): 9A
