Description
General Data

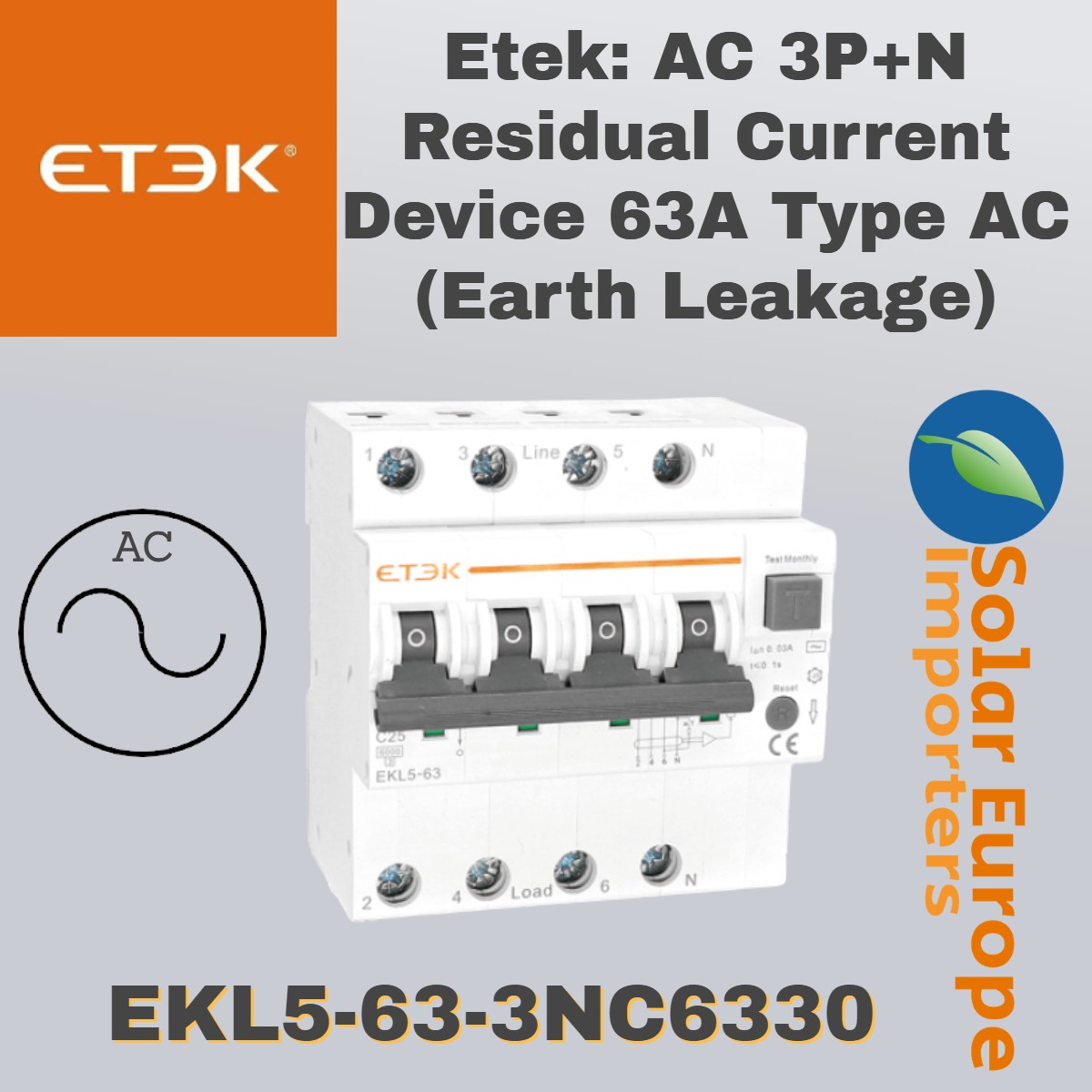

• Model: EKL5-63
• Type: AC
• Poles: 3-Pole + N
• Rated Current (In): 63A
• Rated Voltage (Ue): 400VAC
• Rated Insulation Voltage (Ui): 500VAC
• Rated Frequency: 50Hz
• Rated Residual Operating Current (I△n): 0.03A
• Rated Breaking Capacity: 6KA
• Thermo-Magnetic Release Characteristic: C-Curve
Mechanical Data
• Electrical Life: 4000 Cycles
• Mechanical Life: 10000 Cycles
• Indication Window: Yes
• Ingress Protection IP20
• Width: 90mm
• Operating Temperature: -5°C to +40°C
• Mounting: DIN Rail 35mm (Fast Clip device)
• Safety Rating: IEC61009-1
