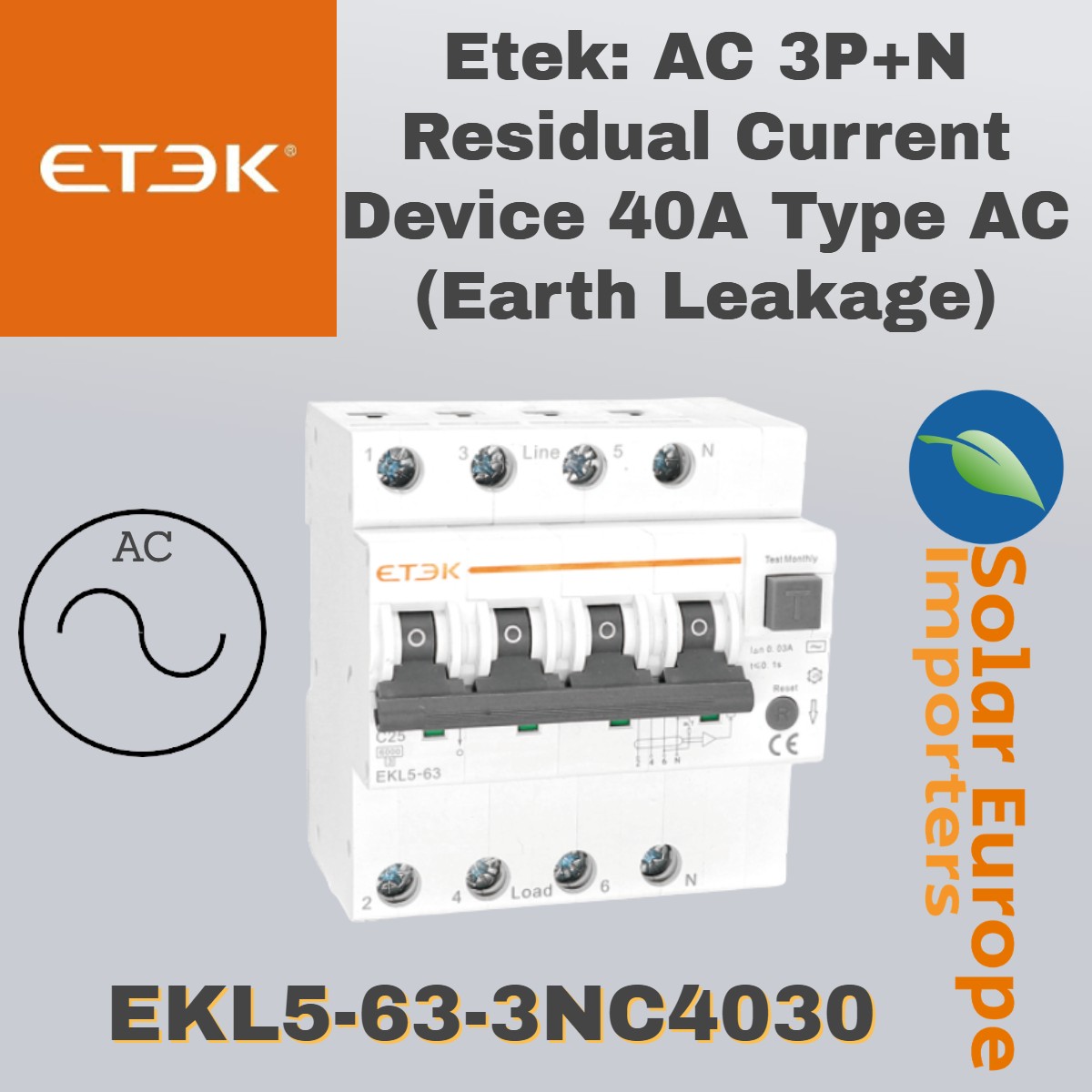

Etek: AC 3P+N Residual Current Device 40A Type AC (Earth Leakage) (EKL5-63-3NC4030)

R797.24 Excl. VAT

Note: All of our prices are excluding VAT

269 in stock

Description

General Data
• Model: EKL5-63
• Type: AC
• Poles: 3-Pole + N
• Rated Current (In): 40A
• Rated Voltage (Ue): 400VAC
• Rated Insulation Voltage (Ui): 500VAC
• Rated Frequency: 50Hz
• Rated Residual Operating Current (I△n): 0.03A
• Rated Breaking Capacity: 6KA
• Thermo-Magnetic Release Characteristic: C-Curve

Mechanical Data
• Electrical Life: 4000 Cycles
• Mechanical Life: 10000 Cycles
• Indication Window: Yes
• Ingress Protection IP20
• Width: 90mm
• Operating Temperature: -5°C to +40°C
• Mounting: DIN Rail 35mm (Fast Clip device)
• Safety Rating: IEC61009-1

Brochure Download

For more information, please download the brochure here: Download
