Description
Electrical Features Working Conditions
Type
Terminal for wiring
Digital colour Measurement voltage range Rated frequency Working current Measuring accuracy
Measuring rate Protection degree Electrical Life
Ambient temperature(with daily average≤35℃) Storage temperature
Air relative humidity Working pressure Sunniness

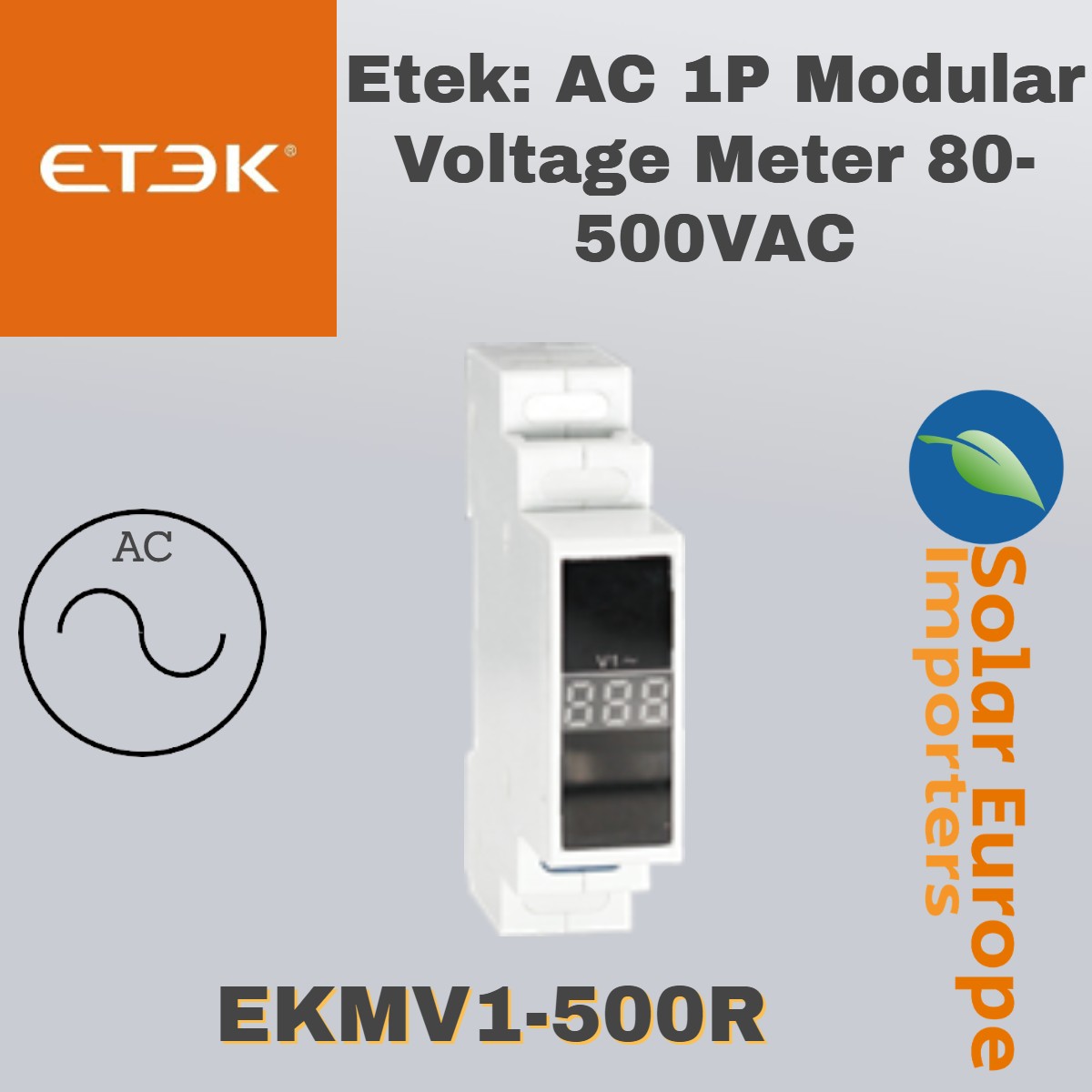

EKMV1: Single phase 1 LED digital display EKMV3: Three phase 3 LED digital display Single phase L+N
Three phase 3L+3N Red, Green AC 80V~500V 50/60Hz
≤20mA 1.0
>200MS/time IP20
≥15000 hours
-5℃~+40℃
-25℃~+70℃
10-80%(no condensation) 80~160Kpa No sunniness
Installation Terminal for wiring
Mounting1.5mm2 On DIN rail
EN60715(35mm) by means of fast clip device
