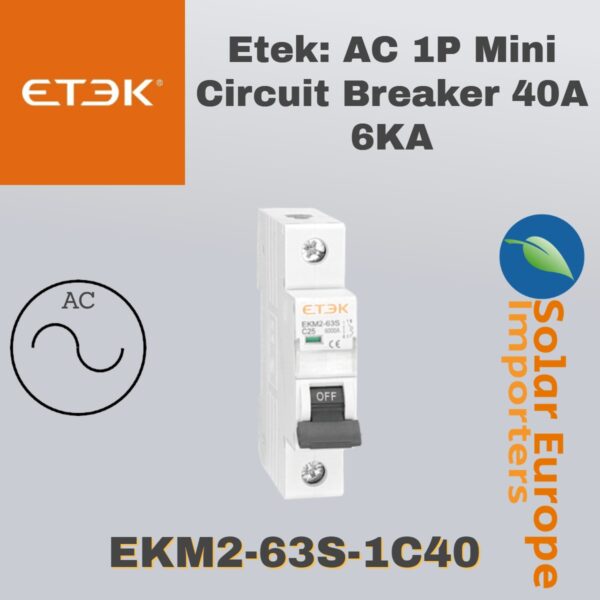

Description
Electrical Features
• Rated Current (In): 40A
• Poles: 1-Pole
• Rated Voltage (Ue): 240VAC / 415VAC
• Insulation Voltage (Ui): 500VAC
• Rated Frequency: 50Hz / 60Hz
• Rated Breaking Capacity: 1-40A 6KA / 50A-63A 6KA
• Thermo-Magnetic Release Characteristic: C
Mechanical Features
• Electrical Life: 4000 Cycles
• Mechanical Life: 10000 Cycles
• Contact Position Indicator: Yes
• Ingress Protection: IP20
• Safety Rating: IEC60898-1
Installation
• Terminal Connection Type: Cable / Pin-type Busbar
• Terminal Size Top / Bottom for Cable: 25mm2 18-3AWG
• Terminal Size Top / Bottom for Busbar: 25mm2 18-3AWG
• Mounting: DIN Rail 35mm (Fast Clip device)
• Connection: Top and Bottom
