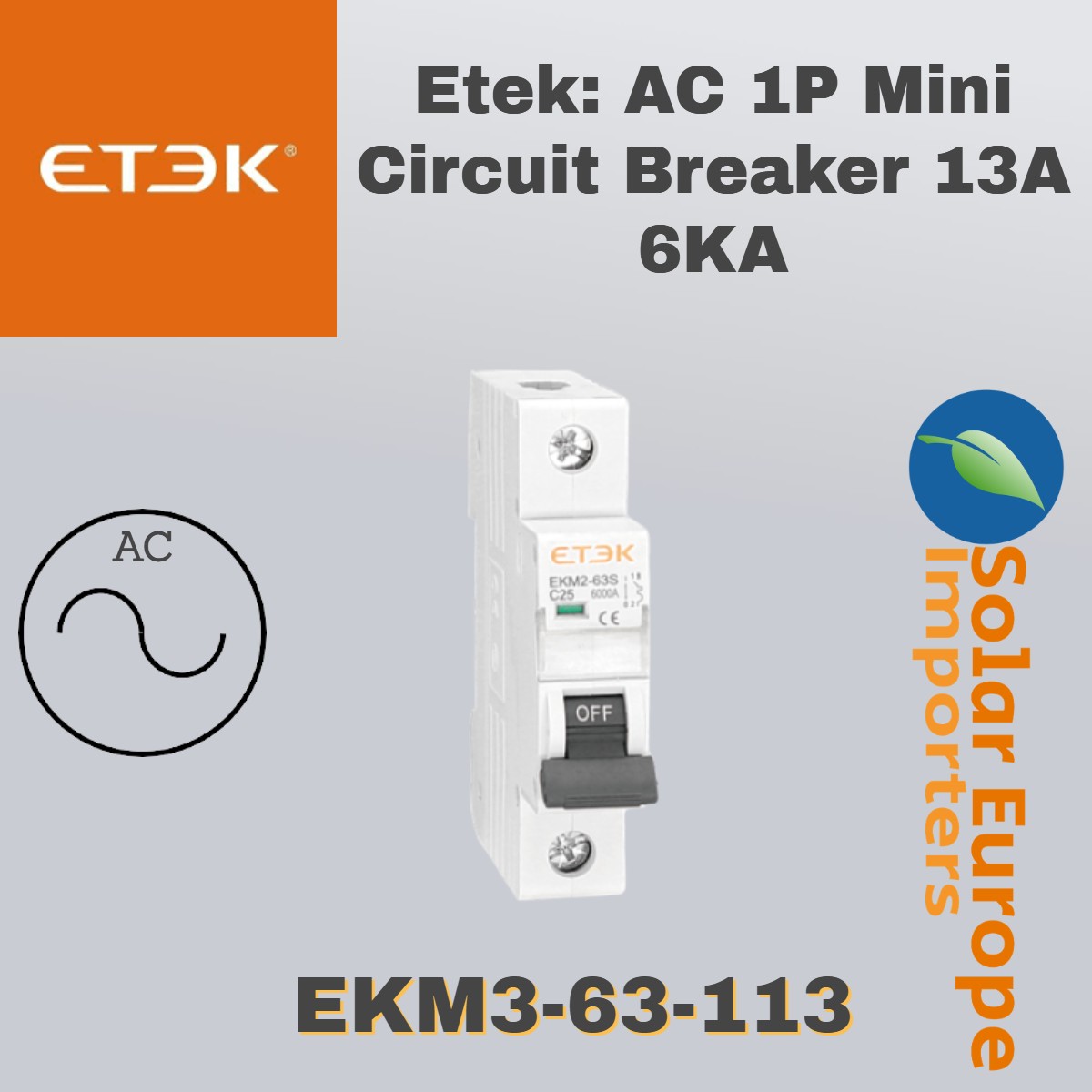

Etek: AC 1P Mini Circuit Breaker 13A 6KA (EKM3-63-113)

R49.37 Excl. VAT

Note: All of our prices are excluding VAT

1211 in stock

Description

Electrical Features
• Rated Current (In): 13A
• Poles: 1-Pole
• Rated Voltage (Ue): 240VAC / 415VAC
• Insulation Voltage (Ui): 500VAC
• Rated Frequency: 50Hz / 60Hz
• Rated Breaking Capacity: 6000A
• Thermo-Magnetic Release Characteristic: C

Mechanical Features
• Electrical Life: 8000 Cycles
• Mechanical Life: 20000 Cycles
• Contact Position Indicator: Yes
• Ingress Protection: IP20
• Safety Rating: IEC60947-2

Installation
• Terminal Connection Type: Cable / Pin-type Busbar
• Terminal Size Top / Bottom for Cable: 25mm2 18-3AWG
• Terminal Size Top / Bottom for Busbar: 25mm2 18-3AWG
• Mounting: DIN Rail 35mm (Fast Clip Device)
• Connection: Top and Bottom
