Description
General Data

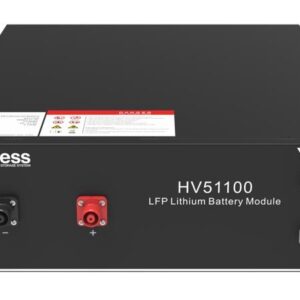

• Model: High Voltage HV51100
• Cell Technology: Li-Ion (LFP)
• Nominal Battery Energy: 5.12KWH
• Nominal Capacity: 100Ah
• Nominal Voltage: 51.2VDC
• Battery Module Charge Voltage: 57.6VDC
• Battery Module Charge Current: 60A
• Battery Module Discharge Current: 60A
• Charging Temperature: 0°C to 55°C
• Discharging Temperature: -10°C to 55°C
• Communication: CAN
• Design Life: 10+ Years
• Cycle Life: >6000 Cycles
• Ingress Protection: IP20

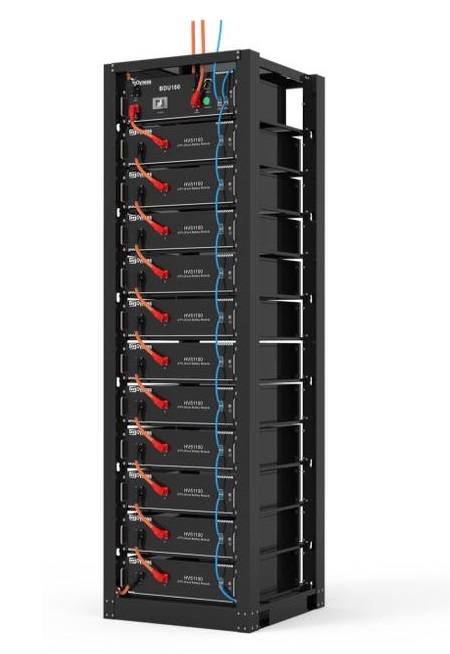

• Expansion: 15 Units in Series
• Certification: UN38.3 / ICE62619

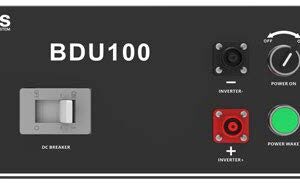

• Rack System Control Unit: Must Use BDU100
