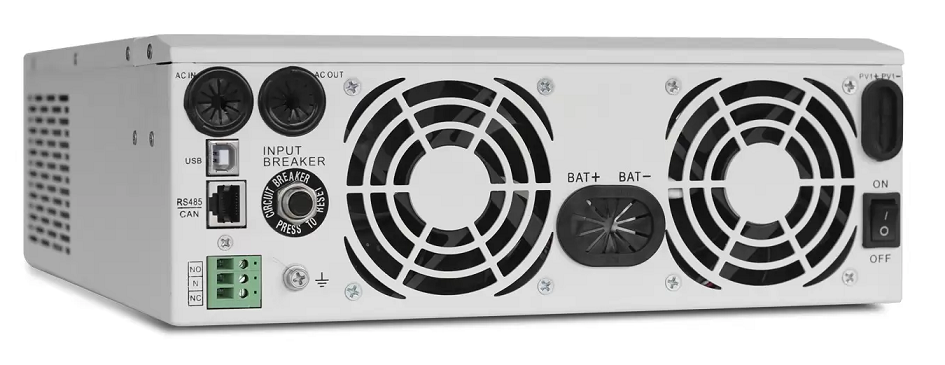

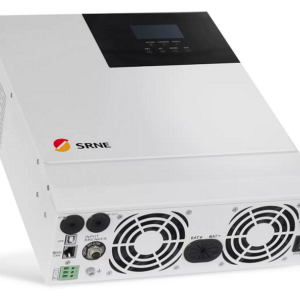

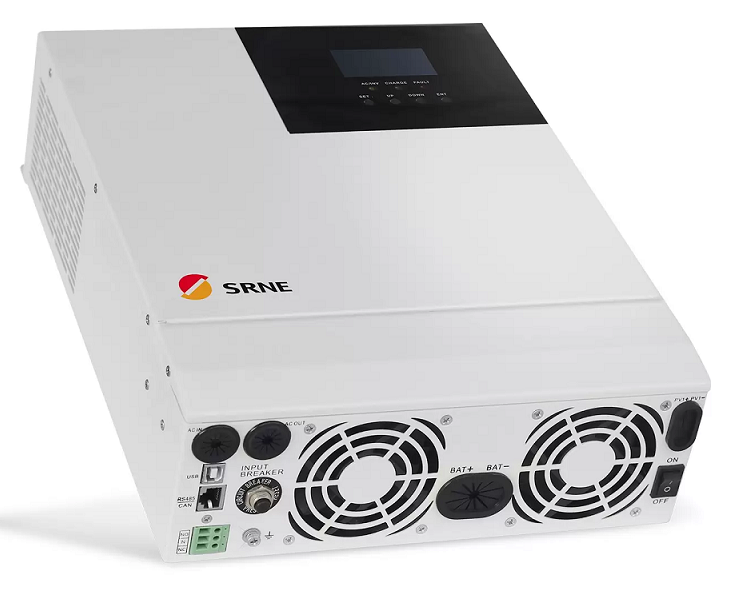

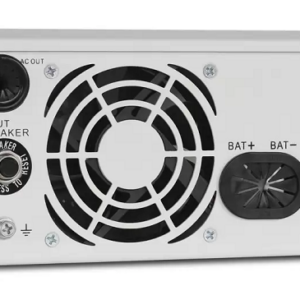

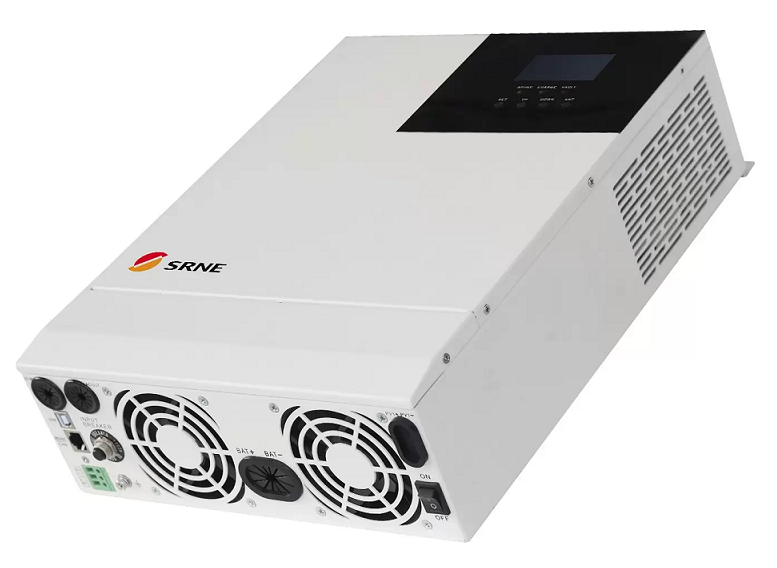

SRNE: Inverter 3Kw Off Grid (SR-HF2430S60-100)

R4,600.00 Excl. VAT

Note: All of our prices are excluding VAT

35 in stock

SKU: SR-HF2430S60-100 Categories: , , ,

Description

AC Mode
• Rated Input Voltage: 230VAC
• Input Voltage Range: 90VAC to 280VAC
• Frequency: 50Hz / 60Hz (Auto detection)
• Overload / Short Circuit Protection: Circuit Breaker
• Efficiency: >95%
• Conversion Time: 10ms
• Maximum Bypass Overload Current: 30A

Inverter Mode
• Output Voltage Waveform: Pure Sine Wave
• Rated Output Power: 3000W
• Power Factor: 1
• Rated Output Voltage: 230VAC
• Output Frequency: 50Hz / 60Hz
• Efficiency: >92%
• Loaded Motor Capability: 2HP
• Output Short Circuit Protection: Circuit Breaker
• Bypass Breaker: 30A
• Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC)
• Battery Voltage Range: 20VDC – 33VDC

AC Charging
• Battery Type: Lead Acid / Lithium
• Maximum Charging Current: 80A
• Charging Voltage Range: 20VDC to 33VDC
• Short Circuit Protection: Circuit Breaker and Blown Fuse
• Circuit Breaker: 30A

PV Charging
• Maximum PV Open Circuit Voltage: 100VDC
• PV Operating Voltage Range: 30VDC to 100VDC
• MPPT Voltage Range: 30VDC to 85VDC
• Maximum Input PV Power: 1400W
• PV Charging Current Range: 0A to 60A (Adjustable)
• Charging Short Circuit Protection: Blown Fuse
• Wiring Protection: Reverse Polarity Protection

Environment Limit
• Ingress Protection: IP20
• Operating Temperature Range: -15°C to +55°C
• Humidity Range: 5% to 95% (Conformal Coating Protection)
• Cooling: Forced Air Cooling, Variable Speed Fan (<60dB)
• Communication: USB / RS485(WIFI/GPRS) / Dry Node Control

Additional information

Weight 6.2 kg
Dimensions 37.8 × 28 × 10.3 cm

Brochure Download

For more information, please download the Brochure here: Download

Installer Manual

For more information, please download the Installer Manual here: Download
