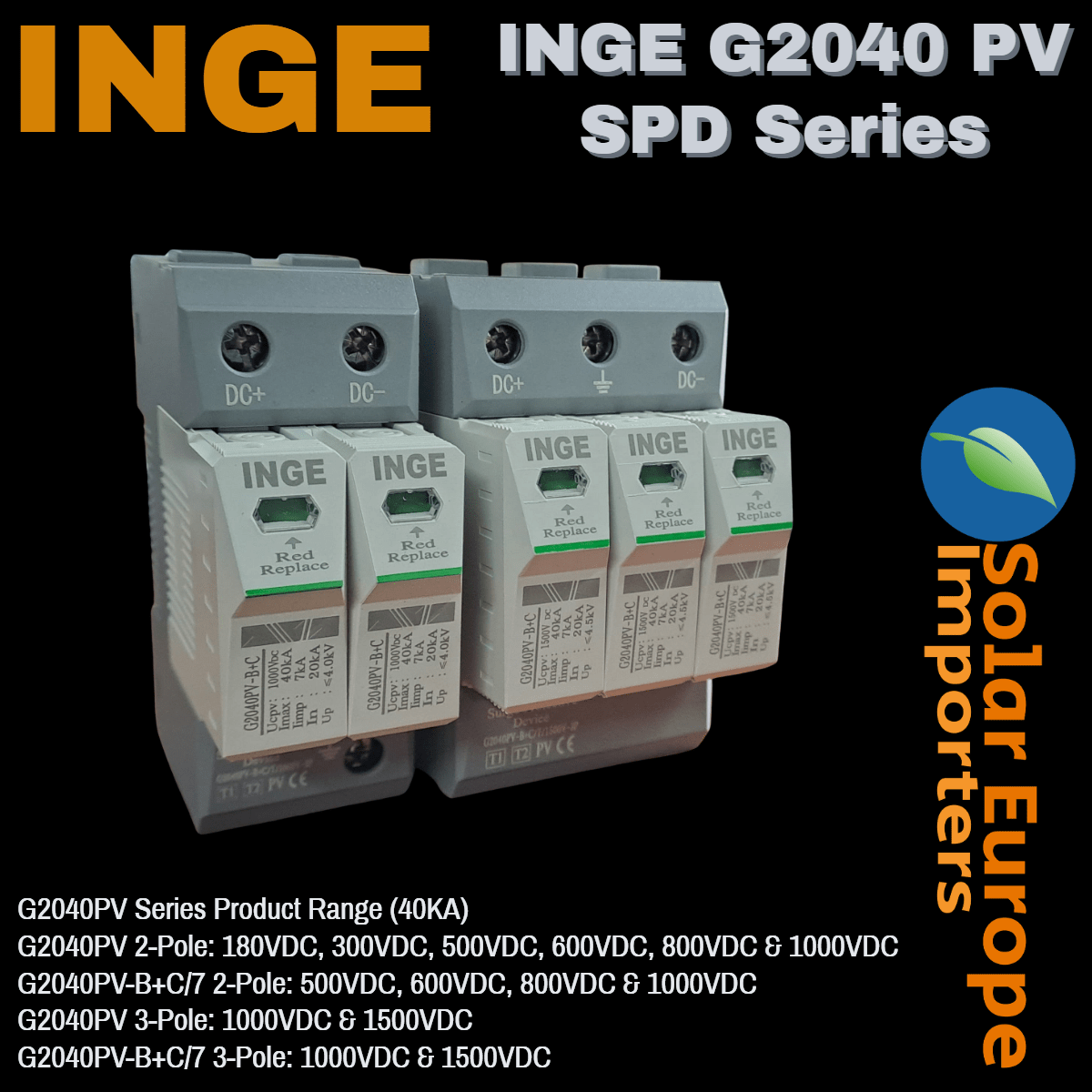

Description
General Data
• Model: G2040PV / G2040PV-B+C
• Type: DC
• Poles: 2-Pole & 3-Pole
• Width / Pole: 18mm
• Casing Material: Fire-retardant reinforced Nylon (UL94V-0)
• Indication Window: Yes
• Ingress Protection IP20
• Mounting: DIN Rail 35mm (Fast Clip device)
• Operating Temperature: -40°C to +80°C
• Safety Rating: CE, TUV, CB
Series Models
G2040PV-2P-180V
• Ucpv: 180VDC
• Imax: 40KA
• In: 20KA
• Up: 1.2KV
G2040PV-2P-300V
• Ucpv: 300VDC
• Imax: 40KA
• In: 20KA
• Up: 1.5KV
G2040PV-2P-500V
• Ucpv: 500VDC
• Imax: 40KA
• In: 20KA
• Up: 2.5KV
G2040PV-2P-600V
• Ucpv: 600VDC
• Imax: 40KA
• In: 20KA
• Up: 2.5KV
G2040PV-2P-800V
• Ucpv: 800VDC
• Imax: 40KA
• In: 20KA
• Up: 3.2KV
G2040PV-2P-1000V
• Ucpv: 1000VDC
• Imax: 40KA
• In: 20KA
• Up: 4.0KV
G2040PV-3P-1000V
• Ucpv: 1000VDC
• Imax: 40KA
• In: 20KA
• Up: 4.0KV
G2040PV-3P-1500V
• Ucpv: 1500VDC
• Imax: 40KA
• In: 20KA
• Up: 4.5KV
G2040PV-B+C/7/500-2P
• Ucpv: 500VDC
• Imax: 40KA
• limp: 7KA
• In: 20KA
• Up: 2.5KV
G2040PV-B+C/7/600-2P
• Ucpv: 600VDC
• Imax: 40KA
• limp: 7KA
• In: 20KA
• Up: 2.5KV
G2040PV-B+C/7/800-2P
• Ucpv: 800VDC
• Imax: 40KA
• limp: 7KA
• In: 20KA
• Up: 3.2KV
G2040PV-B+C/7/1000-2P
• Ucpv: 1000VDC
• Imax: 40KA
• limp: 7KA
• In: 20KA
• Up: 4.0KV
G2040PV-B+C/7/1000-3P
• Ucpv: 1000VDC
• Imax: 40KA
• limp: 7KA
• In: 20KA
• Up: 4.0KV
G2040PV-B+C/7/1500-3P
• Ucpv: 1500VDC
• Imax: 40KA
• limp: 7KA
• In: 20KA
• Up: 4.5KV
