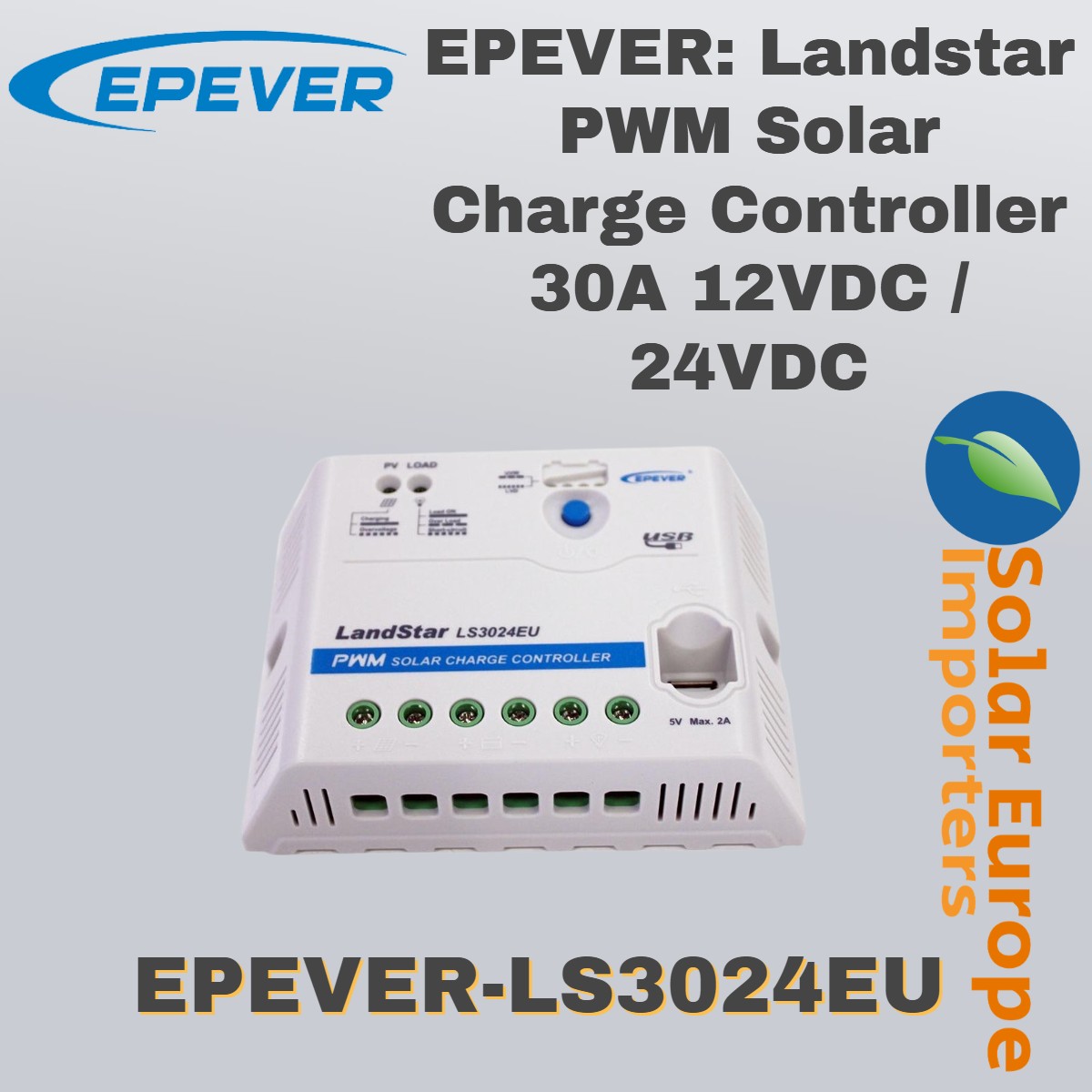

EPEVER: Landstar PWM Solar Charge Controller 30A 12VDC / 24VDC (EPEVER-LS3024EU)

R467.73

Note: All of our prices are excluding VAT

34 in stock

SKU: EPEVER-LS3024EU Category:

Description

General Data
• Nominal System Voltage: 12VDC / 24VDC Auto
• Battery Type: Sealed / Gel / Flooded
• Battery Input Voltage Range: 8VDC to 32VDC
• Rated Charge Current: 30A
• Rated Discharge Current: 30A
• Maximum PV Open Circuit Voltage: 50V
• Equalization Voltage: Sealed:14.6VDC / Flooded:14.8VDC
• Boost Voltage: Gel:14.2VDC / Sealed:14.4VDC / Flooded:14.6VDC
• Float Voltage: Gel / Sealed / Flooded: 13.8VDC
• Low Voltage Reconnect Voltage: Gel / Sealed / Flooded: 12.6VDC
• Low Voltage Disconnect Voltage: Gel / Sealed / Flooded: 11.1VDC
• Self-Consumption: 12VDC ≤ 5mA / 24VDC ≤ 7mA
• Grounding: Common Positive

Environment Limit
• Operating Temperature Range: -35°C to 50°C
• Temperature Compensation: -5mV/°C/2V
• Relative Humidity: ≤95% Non Condensing
• Enclosure: IP20
• Ports: USB Power Output (+5V / 2A)

Additional information

Weight 0.29 kg
Dimensions 14.8 × 10.68 × 4.37 cm

Brochure Download

For more information, please download the brochure here: Download
